Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF4530A-510YCMC 51UH 230MA 2LN SMD AEC-Q200 |
742 |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 3.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ACE1V3225-510-RCMC 51UH 200MA 2LN 2.6KOHM SMD |
953 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM2012H-900-2P-T06CMF,MULTI-GIG ETHERNET, ~125C |
257 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM4520-231-2P-T000CMC 3A 2LN 230 OHM SMD |
1,559 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACE1V4532-201-RCMC 200UH 100MA 2LN 15KOHM SMD |
941 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 15 kOhms @ 10 MHz | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5ATN401SQ2LCMC 2A 2LN 400 OHM SMD |
815 |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACT45C-510-2P-TL000CMC 51UH 200MA AEC-Q200 125DEGC |
787 |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM1210B513R-1ACMC 51UH 200MA 2LN 2.6KOHM SMD |
4,842 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH111TQ2LCMC 3A 2LN 110 OHM SMD AEC-Q200 |
740 |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH151MQ2LCMC 3A 2LN 150 OHM SMD AEC-Q200 |
700 |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 150 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS11V-R08125-CHCMC 12.5MH 800MA 2LN TH |
100 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

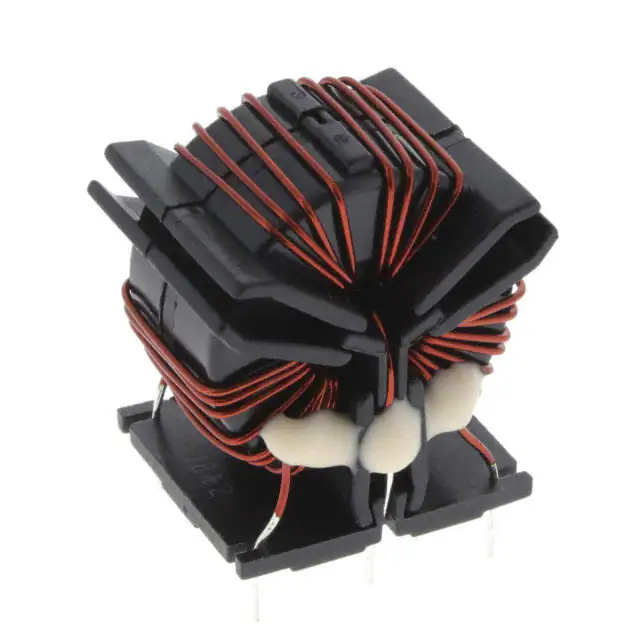

SC-01-S07JCMC 700UH 1A 3LN TH |
4,630 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 700 µH @ 10 kHz | 1A | 38 mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PM3700-70-RCCMC 10MH 1.5A 2LN SMD |
1,597 |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
B82790C0502N201CMC 5UH 1A 2LN SMD AEC-Q200 |
3,424 |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 5 µH @ 100 kHz | 1A | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744869161063CMC 6MH 2.4A 2LN TH |
4,717 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 2.4A | 220mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSRH24NH-30145CMC 14.5MH 3A 2LN TH |
2,887 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82723J2202N001CMC 5.6MH 2A 2LN TH |
2,362 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2A | 160mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PAC6006.104NLTCMC 14A 2LN 610 OHM SMD |
2,857 |
|
Datasheet | Horizontal, 4 J-Lead | - | 2 | 610 Ohms @ 11 MHz | - | 14A | 3.3mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82725J2602N020CMC 3.9MH 6A 2LN TH |
2,325 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-11-20JCMC 2MH 11A 2LN TH |
4,717 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 11A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
