Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

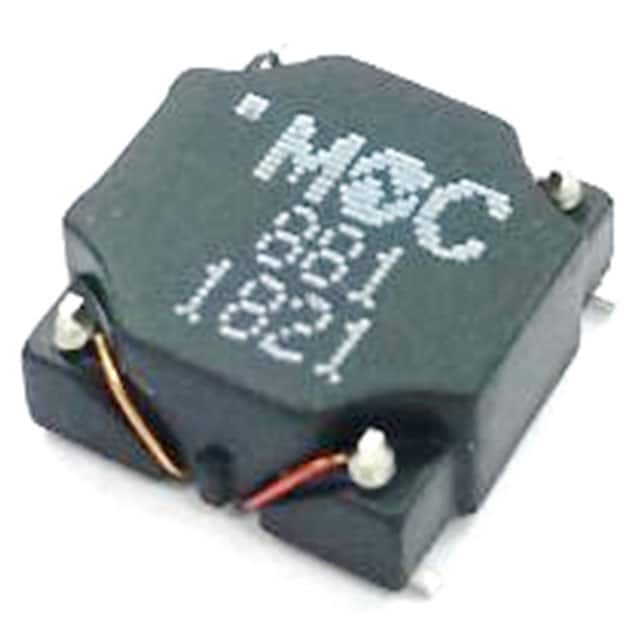

CM0903SG881NCMC 880UH 1.63A 2LN SMD |
590 |
|
Datasheet | - | Signal Line | 2 | - | 880 µH @ 100 kHz | 1.63A | 110mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

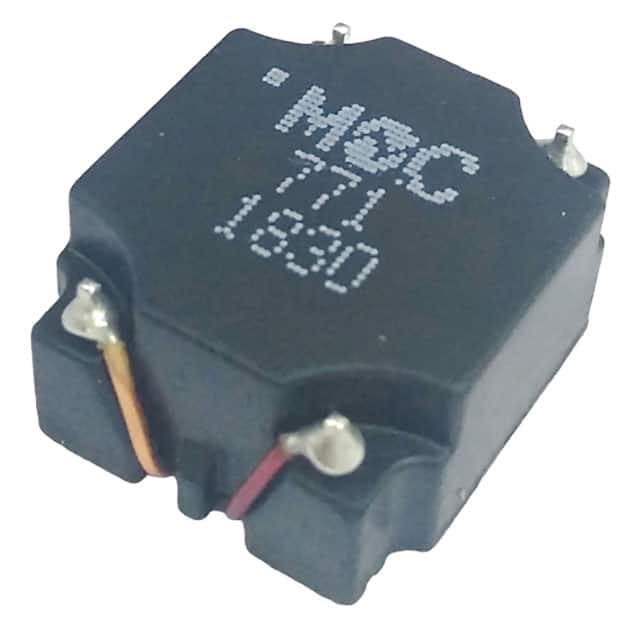

CM1385SG771NCMC 770UH 3.6A 2LN SMD |
250 |
|
Datasheet | - | Signal Line | 2 | - | 770 µH @ 100 kHz | 3.6A | 25mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3216A-600CMC 60UH 200MA 2LN SMD |
1,800 |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 60 µH @ 100 kHz | 200mA | 1.7Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
