Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSA29-T1T2-S24COAX CBL TNC TO TNC |
100 |
|
Datasheet | LSA | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | - | - | - |
|

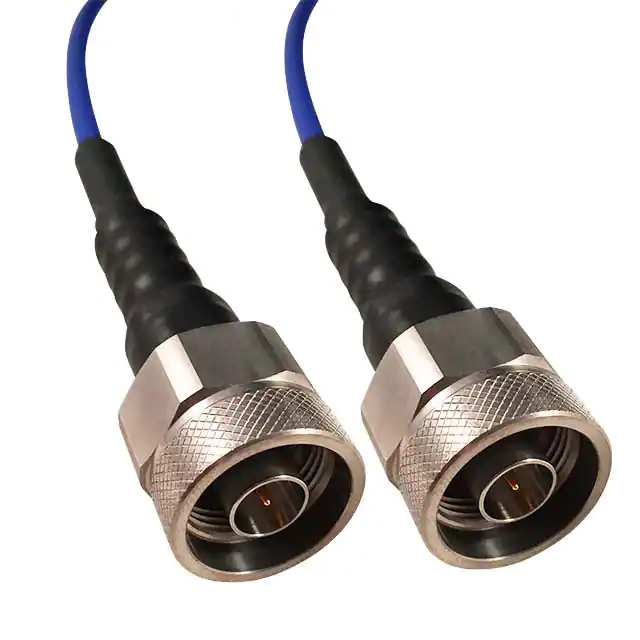

TEA80-N1N1-2M0COAX CBL N-TYPE TO N-TYPE |
250 |
|
Datasheet | TEA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
D12A28-S1PMM-S36COAX CBL SMA TO SMPM |
100 |
|
Datasheet | D38999 | Bulk | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 0.086" Flexible Cable | - | - | - | 18 GHz | Blue | - | - | - | - |
|
|
FLA07-N1N1-F25COAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet | FLA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Brown | Shielded | -55°C ~ 125°C | - | - |
|
|
LMB17-N1N1-F25COAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet | LMB | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
FPA3C-PMRPMR-S16COAX CBL SMPM TO SMPM |
100 |
|
Datasheet | FPA | Bulk | Active | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 16.00" (406.40mm) | 0.047" Flexible Cable | - | - | - | 18 GHz | Black | Shielded | - | - | - |
|
|
LSA29-T1T3-S24COAX CBL TNC TO TNC |
100 |
|
Datasheet | LSA | Bulk | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | - | - | - |
|
|
TSA74-N1S1-1M5COAX CBL SMA TO N-TYPE |
250 |
|
Datasheet | TSA | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
TSA74-S1S1-1M5COAX CBL SMA TO SMA |
250 |
|
Datasheet | TSA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
TSA74-N1N1-1M5COAX CBL N-TYPE TO N-TYPE |
250 |
|
Datasheet | TSA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
