Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
636208040150COAX CBL U.FL TO SMA |
3,920 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636208100150COAX CBL U.FL TO SMA |
2,608 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636208040200COAX CBL U.FL TO SMA |
4,562 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636208050200COAX CBL U.FL TO SMA |
4,562 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|

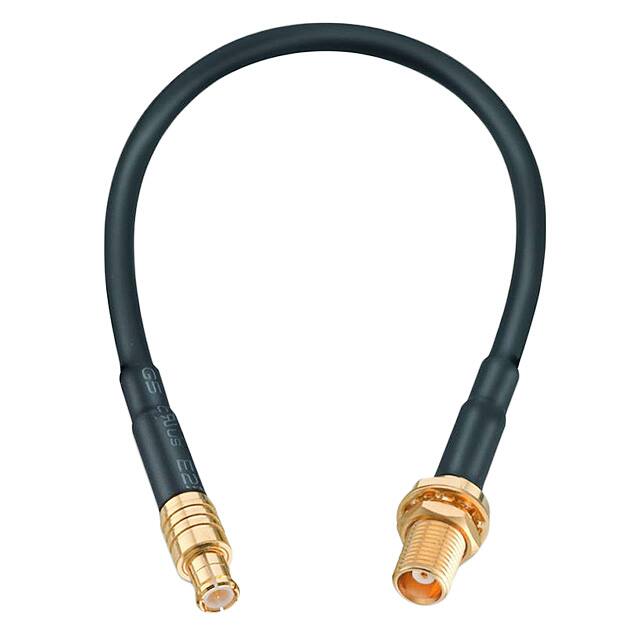

65506506215303COAX CBL MCX TO MCX |
3,397 |
|
Datasheet | WR-CXASY | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
636208110200COAX CBL U.FL TO SMA |
4,252 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636208100200COAX CBL U.FL TO SMA |
3,329 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636208070200COAX CBL U.FL TO SMA |
2,234 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636208080200COAX CBL U.FL TO SMA |
3,631 |
|
Datasheet | WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
65503503630503COAX CBL SMA TO SMA |
2,140 |
|
Datasheet | WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
