Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W07649-24TNC Male Right Angle to TNC Male |
1,374 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|
|
PE3W05401-12COAX CBL N-TYPE TO TNC |
2,730 |
|
Datasheet | - | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Gray | - | - | - | - |
|
|
RG213-SM-SMRA(QTY:8M)COAX CBL SMA TO SMA |
2,303 |
|
Datasheet | - | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 315.0" (8.0m) 26.2' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-SMRP-NM(QTY:8M)COAX CBL RP-SMA TO N-TYPE |
3,355 |
|
Datasheet | - | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 315.0" (8.0m) 26.2' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
LMR-240-UF-UMRA-SMRP(QTY:13Ft)COAX CBL UHF TO RP-SMA |
4,869 |
|
Datasheet | LMR®-240 | Tape & Box (TB) | Active | UHF to RP-SMA | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 156.0" (3.9m) 13.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-BM-TMRA(QTY:5M)COAX CBL BNC TO TNC |
1,278 |
|
Datasheet | LMR®-400 | Tape & Box (TB) | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 196.9" (5.0m) 16.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-SF-716M(QTY:5M)COAX CBL SMA TO 7/16 DIN |
2,785 |
|
Datasheet | LMR®-400 | Tape & Box (TB) | Active | SMA to 7/16 DIN | SMA Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-TM-UM(QTY:5M)COAX CBL TNC TO UHF |
1,092 |
|
Datasheet | LMR®-400 | Tape & Box (TB) | Active | TNC to UHF | TNC Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
PE3C10264-4875 Ohm N Male to 75 Ohm N Male L |
4,525 |
|
- |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 75 Ohms | 75 Ohms | 75 Ohms | 2.5 GHz | Black | - | - | - | - |
|

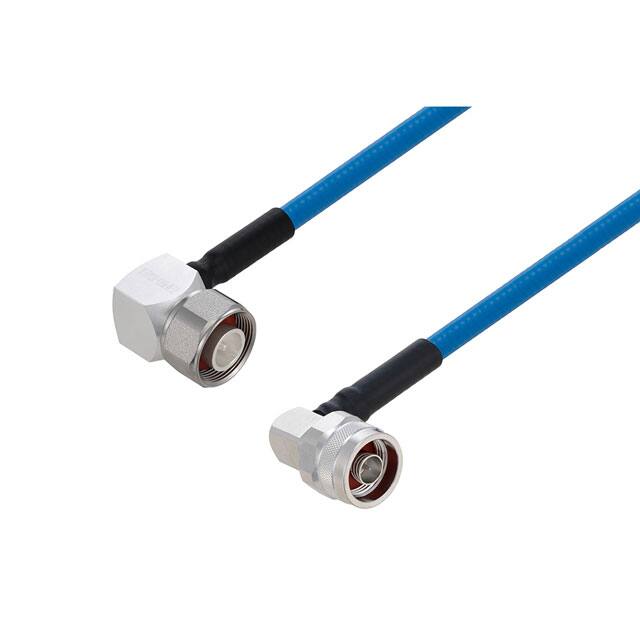

PE3C6234-60COAX CBL 4.1/9.5 TO N-TYPE |
1,439 |
|
Datasheet | - | Bag | Active | 4.1/9.5 to N-Type | 4.1/9.5 Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C6241-50CMCOAX CBL 4.3/10 TO N-TYPE |
4,619 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6228-24COAX CBL 4.3/10 TO N-TYPE |
1,779 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3W00169-12COAX CBL SMA TO TNC |
2,039 |
|
Datasheet | - | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | Hand Formable .141 | 50 Ohms | 50 Ohms | 50 Ohms | - | Silver | - | - | - | - |
|
|
PE3C6243-24COAX CBL 4.3/10 TO N-TYPE |
3,857 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6510-24COAX CBL 7/16 DIN TO 7/16 DIN |
4,167 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FMEF-UM(QTY:30Ft)COAX CBL FME TO UHF |
4,103 |
|
Datasheet | LMR®-195 | Spool | Active | FME to UHF | FME Jack | Female | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-FR-NMRA-BM(QTY:11Ft)COAX CBL N-TYPE TO BNC |
4,243 |
|
Datasheet | LMR®-240 | Tape & Box (TB) | Active | N-Type to BNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug | Male | Free Hanging (In-Line) | - | 132.0" (3.4m) 11.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-240-FR-SMRP-UF(QTY:11Ft)COAX CBL RP-SMA TO UHF |
3,904 |
|
Datasheet | LMR®-240 | - | Active | RP-SMA to UHF | RP-SMA Plug | Female | Free Hanging (In-Line) | - | UHF Jack | Female | Free Hanging (In-Line) | - | 132.0" (3.4m) 11.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-240-FR-SMRA-BMRA(QTY:11Ft)COAX CBL SMA TO BNC |
1,793 |
|
Datasheet | LMR®-240 | - | Active | SMA to BNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 132.0" (3.4m) 11.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
PE3C6368-36COAX CBL 7/16 DIN TO 7/16 DIN |
4,267 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
