Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG213-SM-SF(QTY:9ft)COAX CBL SMA TO SMA |
3,576 |
|
Datasheet | - | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-TF-UMRA(QTY:9ft)COAX CBL TNC TO UHF |
4,762 |
|
Datasheet | - | Tape & Box (TB) | Active | TNC to UHF | TNC Jack | Female | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 108.0" (2.7m) 9.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-SMRA-TMRA(QTY:9ft)COAX CBL SMA TO TNC |
4,083 |
|
Datasheet | - | Tape & Box (TB) | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 108.0" (2.7m) 9.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
PE3C8307-50CMCOAX CBL 4.3/10 TO N-TYPE |
4,852 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8308-12COAX CBL 4.3/10 TO N-TYPE |
3,149 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8295-12COAX CBL 4.3/10 TO 7/16 DIN |
4,190 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|

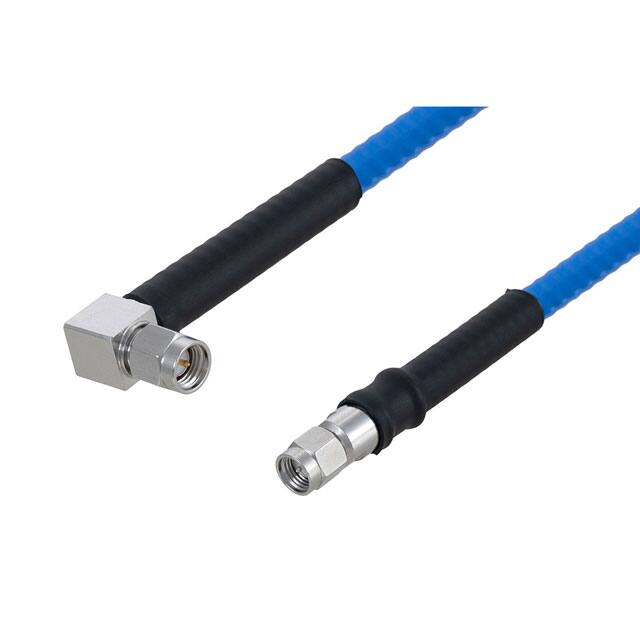

PE3C5894-48COAX CBL SMA TO SMA |
2,504 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C8307-36COAX CBL 4.3/10 TO N-TYPE |
2,951 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C5894-12COAX CBL SMA TO SMA |
2,244 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE39346I-36COAX CBL SMA TO FAKRA |
1,366 |
|
Datasheet | - | Retail Package | Active | SMA to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | - | - | - | - |
|
|
PE3C6346-12COAX CBL N-TYPE TO N-TYPE |
3,099 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
LMR-400-DB-716M-SMRA(QTY:2M)COAX CBL 7/16 DIN TO SMA |
1,129 |
|
Datasheet | LMR®-400 | Tape & Box (TB) | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 78.7" (2.0m) 6.6' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-240-FR-TM-TM(QTY:1Ft)COAX CBL TNC TO TNC |
4,399 |
|
Datasheet | LMR®-240 | - | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
PE3C6382-50CMCOAX CBL 4.3/10 TO N-TYPE |
2,399 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPP-375LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | - | - | - |
|
|
PE3C5895-12COAX CBL SMA TO SMA |
1,698 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8278-12COAX CBL 4.1/9.5 TO 4.3/10 |
4,295 |
|
Datasheet | - | Retail Package | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | - | - | - |
|
|
PE3C8308-50CMCOAX CBL 4.3/10 TO N-TYPE |
3,379 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6361-12COAX CBL N-TYPE TO N-TYPE |
3,013 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C6346-50CMCOAX CBL N-TYPE TO N-TYPE |
3,928 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
LMR-400-UF-TMRA-716FC(QTY:2M)COAX CBL TNC TO 7/16 DIN |
1,606 |
|
Datasheet | LMR®-400 | Tape & Box (TB) | Active | TNC to 7/16 DIN | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
