Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
73071-X-36COAX CBL SMA TO SMA |
1,427 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73071-X-48COAX CBL SMA TO SMA |
3,297 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73071-X-60COAX CBL SMA TO SMA |
3,202 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|

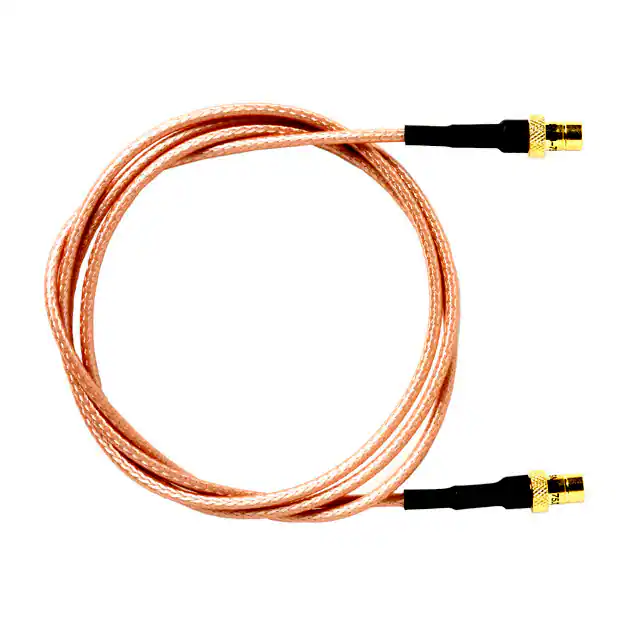

73072-VV-12COAX CBL SMB TO SMB |
1,121 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179B | 75 Ohms | - | 75 Ohms | 2 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73072-VV-24COAX CBL SMB TO SMB |
3,001 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179B | 75 Ohms | - | 75 Ohms | 2 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73072-VV-48COAX CBL SMB TO SMB |
2,640 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-179B | 75 Ohms | - | 75 Ohms | 2 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73072-VV-60COAX CBL SMB TO SMB |
3,197 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-179B | 75 Ohms | - | 75 Ohms | 2 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
73073-BB-12COAX CBL SMB TO SMB |
3,067 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73073-BB-24COAX CBL SMB TO SMB |
4,742 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73073-BB-48COAX CBL SMB TO SMB |
1,512 |
|
Datasheet | - | Bag | Obsolete | SMB to SMB | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
73083-X-36COAX CBL SMA TO SMA |
4,334 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73083-X-48COAX CBL SMA TO SMA |
4,134 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
73083-X-60COAX CBL SMA TO SMA |
2,669 |
|
Datasheet | - | Bag | Obsolete | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
U.FL-2LP-066J1-A-(700)COAX CBL U.FL TO U.FL |
3,942 |
|
Datasheet | U.FL | Bag | Obsolete | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 27.56" (700.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
CARSMA-UFL-10COAX CBL U.FL TO RP-SMA |
2,703 |
|
Datasheet | MultiTech xDot® | Tray | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | - | - | - | - | Gray | 10 pcs per pkg | - | - | - |
|
W9020COAX CBL U.FL TO RP-SMA |
4,690 |
|
- |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 20.00" (508.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
W9009COAX CBL U.FL TO RP-SMA |
2,340 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
1064552-1COAX CBL SMA TO SSMT |
4,632 |
|
Datasheet | - | Bulk | Active | SMA to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.30mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
.jpg)
|
W.FL-2LP-04N1-A-(35)COAX CBL W.FL TO W.FL |
3,139 |
|
Datasheet | W.FL | Bulk | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.378" (35.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
|
U.FL-2LP-066J1-A-(180)COAX CBL U.FL TO U.FL |
4,803 |
|
Datasheet | U.FL | Bulk | Obsolete | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.087" (180.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
