Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C58LL-SMAM-2438-NMCOAX CBL SMA TO N-TYPE |
3,388 |
|
Datasheet | - | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-58 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
|

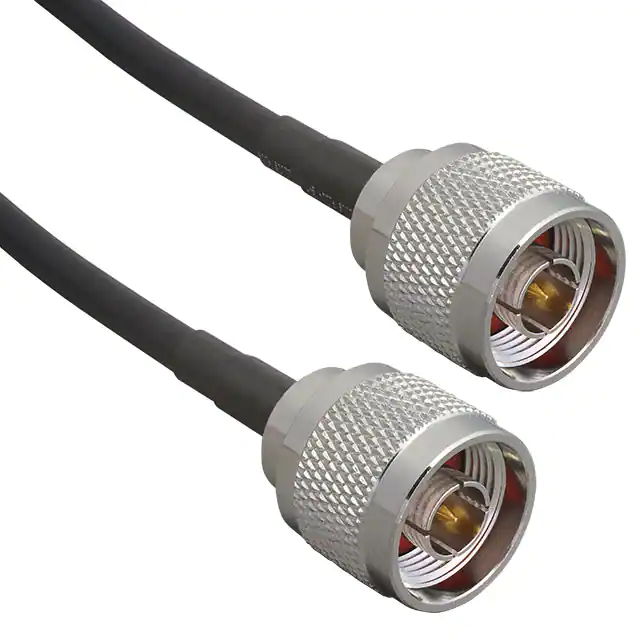

CSD-NM-914-NMCOAX CBL N-TYPE TO N-TYPE |
1,271 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CSI-RSFB-100-UFFRCOAX CBL U.FL TO RP-SMA |
4,666 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|

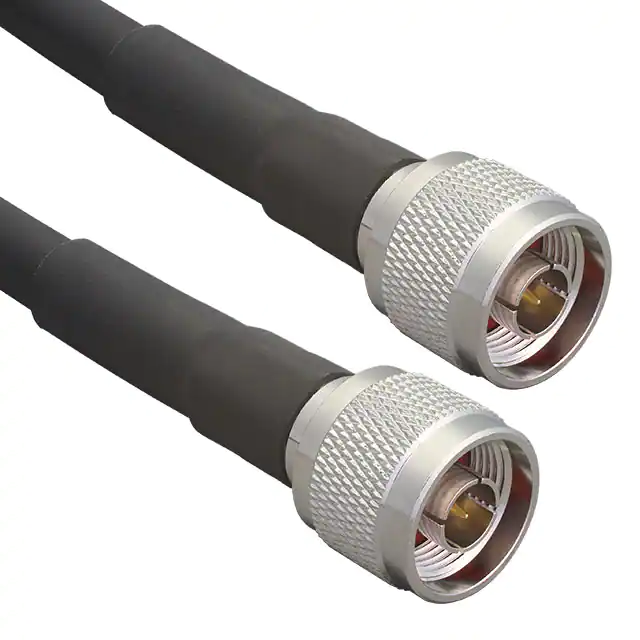

CSO-NM-1200-NMCOAX CBL N-TYPE TO N-TYPE |
1,333 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
2480671-1COAX CBL MMCX TO MMCX |
2,003 |
|
Datasheet | - | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -55°C ~ 155°C | - | - |
|
|
2441529-1COAX CBL 4.3/10 TO 4.3/10 |
1,653 |
|
Datasheet | - | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | - | - | 50 Ohms | 4 GHz | Black | - | -55°C ~ 85°C | - | - |
|
|
2441531-1COAX CBL 7/16 DIN TO 7/16 DIN |
3,051 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 0.118" (3.00mm) | - | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
2441478-1COAX CBL 1.0MM TO 1.0MM |
3,694 |
|
Datasheet | - | Bag | Active | 1.0mm to 1.0mm | 1.0mm Plug | Male | Free Hanging (In-Line) | - | 1.0mm Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | - | - | - | 50 Ohms | 110 GHz | Black | - | -40°C ~ 85°C | - | - |
|

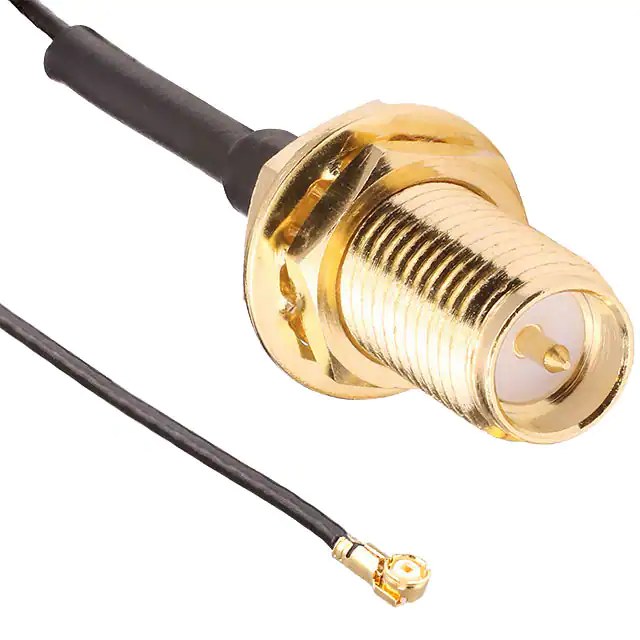

CSJ-RGFB-100-MHF3COAX CBL RP-SMA TO W.FL MHF3 |
2,745 |
|
Datasheet | - | Bulk | Active | RP-SMA to W.FL, I-PEX MHF3 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CSJ-RGFB-200-MHF3COAX CBL SMA TO W.FL, MHF3 |
2,029 |
|
Datasheet | - | Bulk | Active | SMA to W.FL, I-PEX MHF3 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
