Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7032-6351COAX CBL SMPM TO SMPM |
2,535 |
|
Datasheet | - | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
5223-36COAX CBL BNC TRI TO BNC TRI |
2,065 |
|
Datasheet | - | Bulk | Active | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | - | - | Triax Plug | Male | - | - | 36.00" (914.40mm) | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
095-909-173M400COAX CBL N-TYPE TO N-TYPE |
120 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
5223-60COAX CBL BNC TRI TO BNC TRI |
105 |
|
Datasheet | - | Bulk | Active | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | - | - | Triax Plug | Male | - | - | 60.0" (1.5m) 5.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
MINIBEND KR-10COAX CBL 2.92MM TO 2.92MM |
4,813 |
|
Datasheet | MINIBEND | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.086" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
7032-6354COAX CBL SMPM TO SMPM |
189 |
|
Datasheet | - | Bulk | Active | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
MINIBEND KR-12COAX CBL 2.92MM TO 2.92MM |
3,066 |
|
Datasheet | MINIBEND | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.086" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|

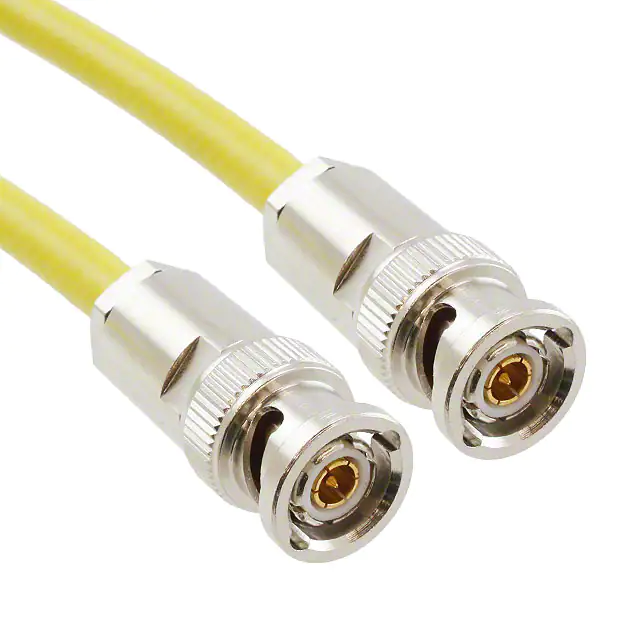

5054-60COAX CBL BNC TRI TO BNC TRI |
1,945 |
|
Datasheet | - | Bulk | Active | BNC 2 Lug Triax to BNC 2 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58A | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
MINI141-6COAX CBL SMA TO SMA |
1,497 |
|
Datasheet | MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -55°C ~ 200°C | - | - |
|
7032-7154COAX CBL SMPM TO SMPM |
1,973 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

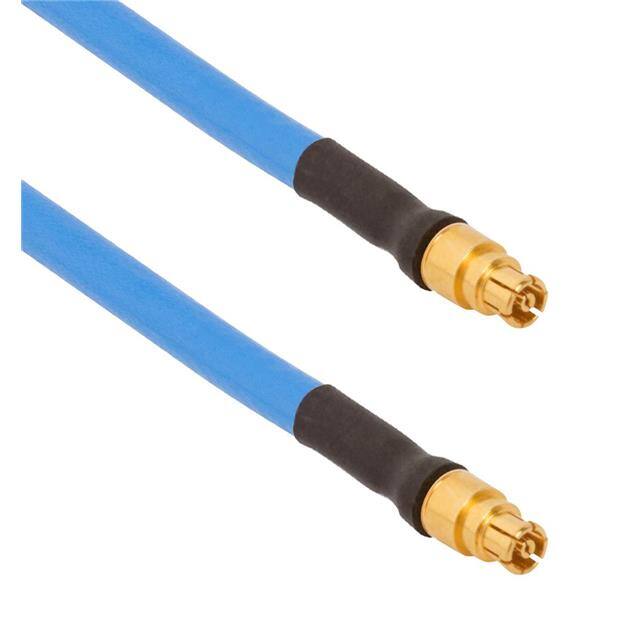

7032-7153COAX CBL SMPM TO SMPM |
1,531 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

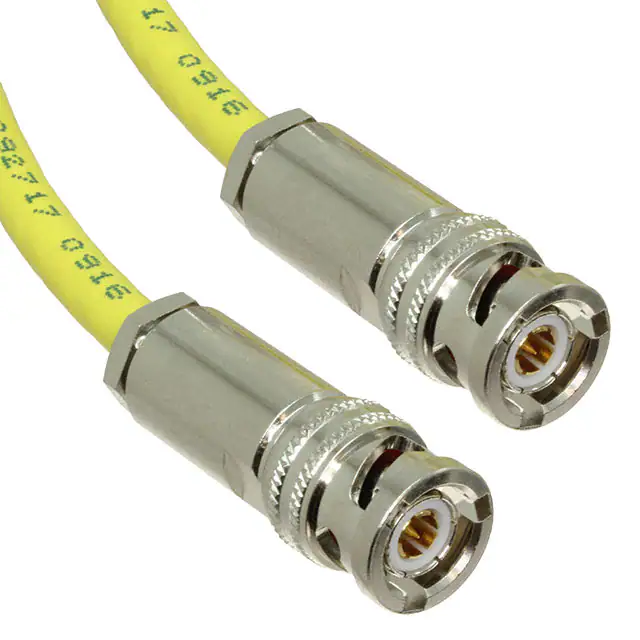

EM5223-72#COAX CBL BNC TRI TO BNC TRI |
2,016 |
|
Datasheet | - | Bulk | Active | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
|
MINI141-8COAX CBL SMA TO SMA |
2,911 |
|
Datasheet | MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .141 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -55°C ~ 200°C | - | - |
|
7032-7434-180COAX CBL SMA TO SMPM |
3,989 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1295COAX CBL SMP TO SMPM |
1,213 |
|
Datasheet | - | Bag | Active | SMP to SMPM | SMP Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
21-20-24COAX CBL TRB TO TRB |
1,152 |
|
Datasheet | - | Bag | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
|
2408023-1COAX CBL SMA TO PROBE |
1,674 |
|
Datasheet | Blind-Mate Coaxial | Bag | Active | SMA to Probe | SMA Jack | Female | Free Hanging (In-Line) | - | Probe, Right Angle | Male | Free Hanging (In-Line) | - | 11.930" (303.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
MINI141-12COAX CBL SMA TO SMA |
2,962 |
|
Datasheet | MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -55°C ~ 200°C | - | - |
|
7032-7242COAX CBL SMA TO SMPM |
1,654 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-6355COAX CBL SMPM TO SMPM |
1,553 |
|
Datasheet | - | Bulk | Active | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
