Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAB412RF-0200-A-1-ECOAX CBL MHF1 TO SMA |
4,664 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Stainless Steel 303, IP Rated Unmated | -40°C ~ 85°C | - | - |
|
CSD-NM-914-NMCOAX CBL N-TYPE TO N-TYPE |
1,271 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
MH113-MH1RP-01BJ1-0300COAX CBL U.FL MHF1 TO SMA |
3,126 |
|
Datasheet | MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
BU-4150029M3.0COAX CBL SMA TO SMA |
1,385 |
|
Datasheet | BU | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | -65°C ~ 150°C | - | - |
|
CCSMA1-MM-RG174-36COAX CBL SMA TO SMA |
4,636 |
|
Datasheet | CCSMA1 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
CCBNS-MM-RG316DS-6COAX CBL BNC TO SMA |
4,805 |
|
Datasheet | CCBNS | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
415-0025-MM150COAX CBL SMA TO SMA |
1,118 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
65503503515305COAX CBL SMA TO SMA |
2,175 |
|
Datasheet | WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
RF316-01SP1-03RP1-0152COAX CBL MMCX TO SMA |
2,520 |
|
Datasheet | RF316 | Bag | Active | MMCX to SMA | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
0732305293COAX CBL BNC TO SMA |
1,077 |
|
Datasheet | 73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | - | - | - | - | - | - | - |
|
415-0073-MM250COAX CBL SMA TO MMCX |
4,826 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
415-0025-MM750COAX CBL SMA TO SMA |
3,897 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
095-850-274-024COAX CBL TNC TO TNC |
4,011 |
|
Datasheet | TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
415-0056-024COAX CBL BNC TO BNC |
3,362 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 8218 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

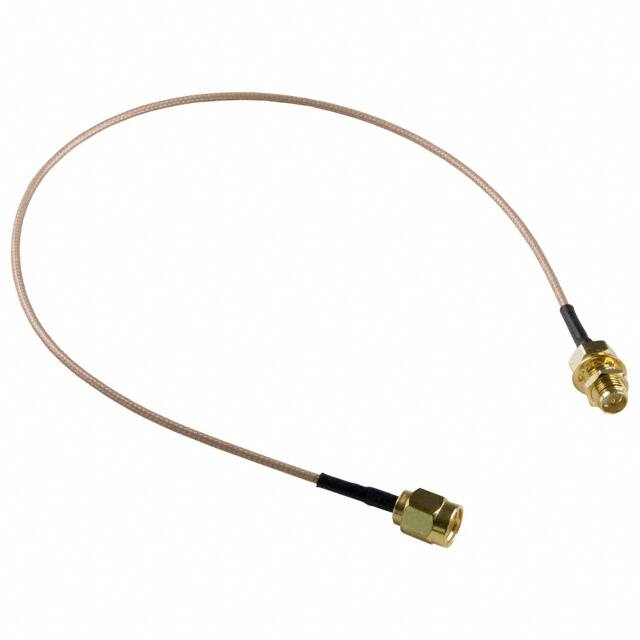

DC-ANT-E-24DPCOAX CBL RP-SMA TO RP-SMA |
3,776 |
|
Datasheet | - | Box | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | - | - | - | - | - | Copper | - | - | - | - |
|
|
RF316-01SB1-03SP1-0305COAX CBL MMCX TO SMA |
3,798 |
|
Datasheet | RF316 | Bag | Active | MMCX to SMA | MMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
115101-01-06.00COAX CBL BNC TO BNC |
3,560 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
415-0034-MM250COAX CBL SMA TO SMA |
2,659 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
|
RF316-01RP1-03RP1-0152COAX CBL MMCX TO SMA |
4,903 |
|
Datasheet | RF316 | Bag | Active | MMCX to SMA | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
095-900-559-200COAX CBL U.FL AMC TO MCX |
3,539 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
