Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS18-SMSM-03.00FCOAX CBL SMA TO SMA |
1,199 |
|
Datasheet | Clarity™ | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 18 GHz | Blue | Armored Cable, Shielded | -45°C ~ 85°C | - | - |
|
|
CLS26-SMSM-03.00FCOAX CBL SMA TO SMA |
2,749 |
|
Datasheet | Clarity™ | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 26 GHz | Blue | Armored Cable, Shielded | -45°C ~ 85°C | - | - |
|
CLS40-KMKF-02.00FCOAX CBL 2.92MM TO 2.92MM |
1,148 |
|
Datasheet | Clarity™ | Box | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 40 GHz | Blue | Armored Cable, Shielded | -45°C ~ 85°C | - | - |
|
|
CLS40-KMKF-02.50FCOAX CBL 2.92MM TO 2.92MM |
4,492 |
|
Datasheet | Clarity™ | Box | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | - | - | - | 50 Ohms | 40 GHz | Blue | Armored Cable, Shielded | -45°C ~ 85°C | - | - |
|
CLS40-KMKM-02.50FCOAX CBL 2.92MM TO 2.92MM |
2,018 |
|
Datasheet | Clarity™ | Box | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | - | - | - | 50 Ohms | 40 GHz | Blue | Armored Cable, Shielded | -45°C ~ 85°C | - | - |
|
CLU40-KMKM-02.00FCOAX CBL 2.92MM TO 2.92MM |
3,615 |
|
Datasheet | Clarity™ | Box | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
|
LMR195NMSM3.0FCOAX CBL SMA TO N-TYPE |
4,039 |
|
- |
LMR® | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
LUF195NMSM3.0FCOAX CBL SMA TO N-TYPE |
3,603 |
|
Datasheet | LMR® | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 2.5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
LMR400NFNM3.0FCOAX CBL N-TYPE TO N-TYPE |
4,901 |
|
Datasheet | LMR® | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|

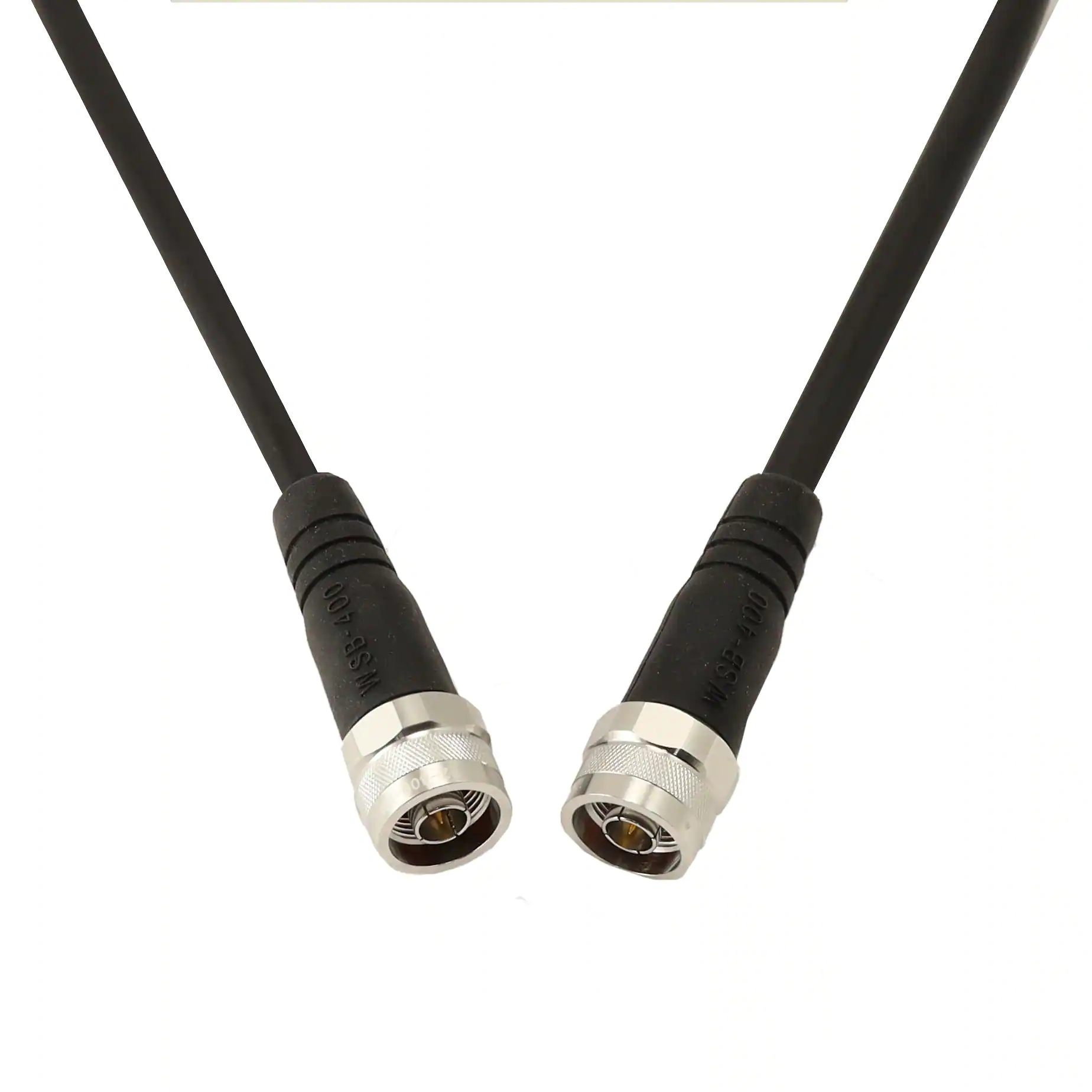

LDB400NMNM3.0FCOAX CBL N-TYPE TO N-TYPE |
4,693 |
|
Datasheet | LMR®-400-DB | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 2.5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
