Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-CX-1004-144COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1004 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|

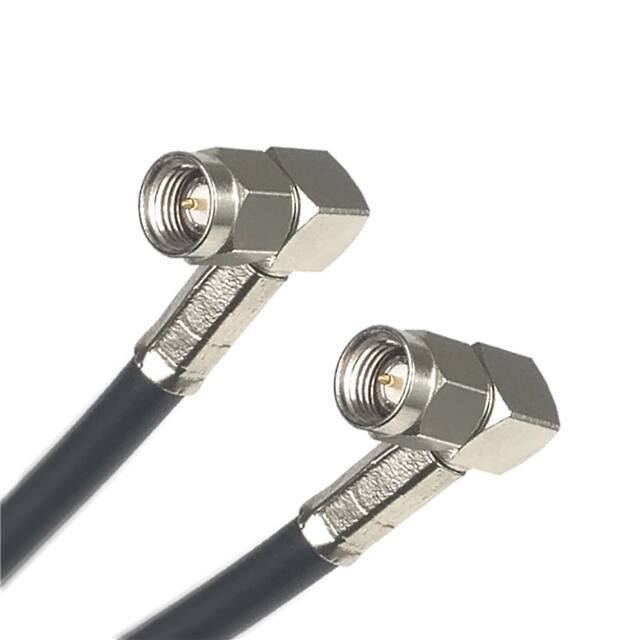

R-CX-1103-300COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1103 | Box | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1202-300COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1202 | Box | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C | - | - |
|

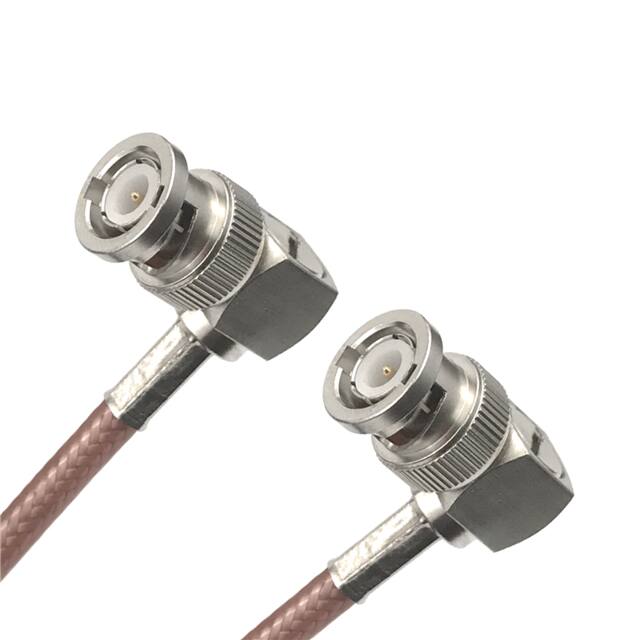

R-CX-1005-144COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1005 | Box | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1005-180COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1005 | Box | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1103-600COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1103 | Box | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1004-240COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1004 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1200-600COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1200 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C | - | - |
|
|
R-CX-1005-240COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1005 | Box | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1201-600COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1201 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C | - | - |
