Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-CX-1003-48COAX CBL BNC TO BNC |
1,649 |
|
Datasheet | R-CX-1003 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1300-36COAX CBL BNC TO BNC |
1,195 |
|
Datasheet | R-CX-1300 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1200-72COAX CBL BNC TO BNC |
2,048 |
|
Datasheet | R-CX-1200 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1301-24COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1301 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1101-24COAX CBL SMA TO N-TYPE |
100 |
|
Datasheet | R-CX-1101 | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
R-CX-1100-60COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1100 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | - | - | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
|
R-CX-1100-72COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1100 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | - | - | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|

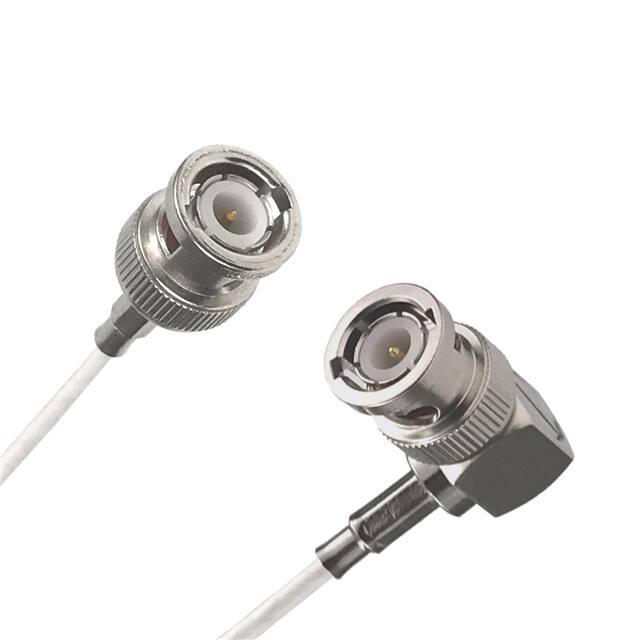

R-CX-1201-12COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1201 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1003-60COAX CBL BNC TO BNC |
3,299 |
|
Datasheet | R-CX-1003 | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C | - | - |
|
|
R-CX-1300-48COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1300 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
