Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCA-10-72COAX CBL TRB TO TRB |
4,700 |
|
Datasheet | - | Bag | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Twinaxial | - | - | 78 Ohms | - | Blue | Shielded | -55°C ~ 165°C | - | - |
|
R-CX-1001-240COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1001 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C | - | - |
|
RCA-11-48COAX CBL TRS TO TRS |
4,631 |
|
Datasheet | - | Bag | Active | TRS to TRS | TRS Plug | Male | Free Hanging (In-Line) | - | TRS Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Twinaxial | - | - | 78 Ohms | - | Blue | Shielded | -55°C ~ 165°C | - | - |
|
R-CX-1300-300COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1300 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
RCA-10-96COAX CBL TRB TO TRB |
1,394 |
|
Datasheet | - | Bag | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | Twinaxial | - | - | 78 Ohms | - | Blue | Shielded | -55°C ~ 165°C | - | - |
|
R-CX-1002-240COAX CBL SMA TO SMA |
100 |
|
Datasheet | R-CX-1002 | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C | - | - |
|

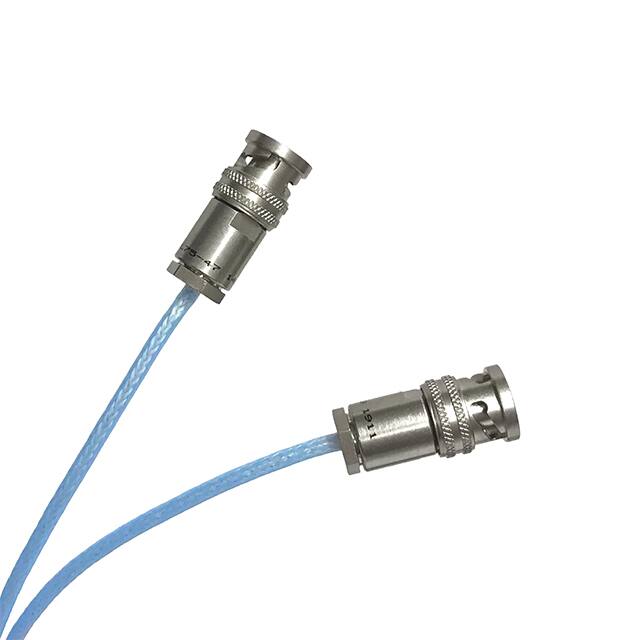

RCA-10-120COAX CBL TRB TO TRB |
4,074 |
|
Datasheet | - | Bag | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Twinaxial | - | - | 78 Ohms | - | Blue | Shielded | -55°C ~ 165°C | - | - |
|
RCA-11-60COAX CBL TRS TO TRS |
3,190 |
|
Datasheet | - | Bag | Active | TRS to TRS | TRS Plug | Male | Free Hanging (In-Line) | - | TRS Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Twinaxial | - | - | 78 Ohms | - | Blue | Shielded | -55°C ~ 165°C | - | - |
|
R-CX-1301-300COAX CBL BNC TO BNC |
100 |
|
Datasheet | R-CX-1301 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
R-CX-1000-300COAX CBL SMA TO SMA |
1,476 |
|
Datasheet | R-CX-1000 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C | - | - |
