Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135110-01-M0.25COAX CBL SMA TO SMA |
4,220 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
245106-02-03.00COAX CBL SMA TO MMCX |
4,114 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-902-514-012COAX CBL SMA TO SMA |
1,866 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
245107-02-12.00COAX CBL SMA TO MMCX |
1,294 |
|
Datasheet | - | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
095-850-285-200COAX CBL U.FL AMC TO RP-TNC |
4,298 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-902-538-006COAX CBL RP-SMA TO RP-SMA |
3,994 |
|
Datasheet | - | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
115101-06-36.00COAX CBL BNC TO BNC |
1,738 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - | - | - |
|
336503-12-0050COAX CBL U.FL AMC TO MCX |
2,443 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-902-515-012COAX CBL RP-SMA TO RP-SMA |
1,242 |
|
Datasheet | - | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|

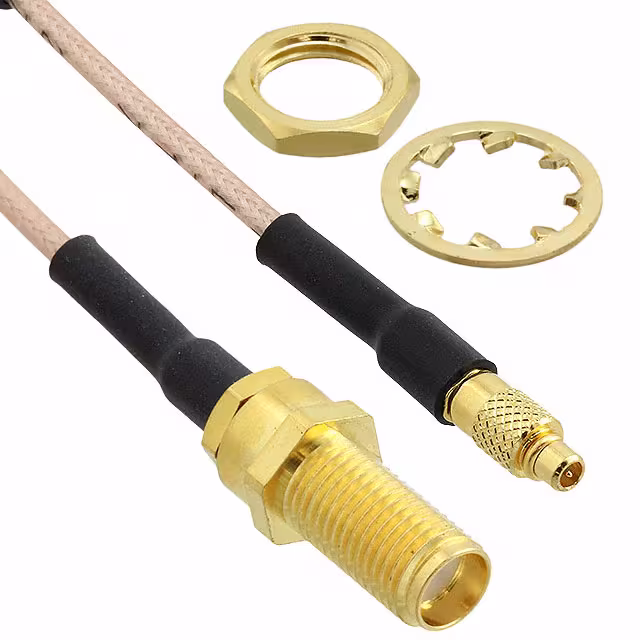

245110-08-03.00COAX CBL SMA TO MMCX |
4,374 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
