Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-207-012COAX CBL BNC TO MMCX |
4,547 |
|
Datasheet | - | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-850-259-006COAX CBL BNC TO BNC |
4,490 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
135101-R1-06.00COAX CBL SMA TO SMA |
2,146 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
255104-01-36.00COAX CBL MCX TO MCX |
3,157 |
|
Datasheet | - | Box | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-700-37-M200COAX CBL SMB TO SMB |
3,765 |
|
Datasheet | SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
145101-01-24.00COAX CBL SMB TO SMB |
4,244 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-462-004COAX CBL SMA TO CABLE |
4,209 |
|
Datasheet | - | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 4.000" (101.60mm) | Micro Coaxial | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|

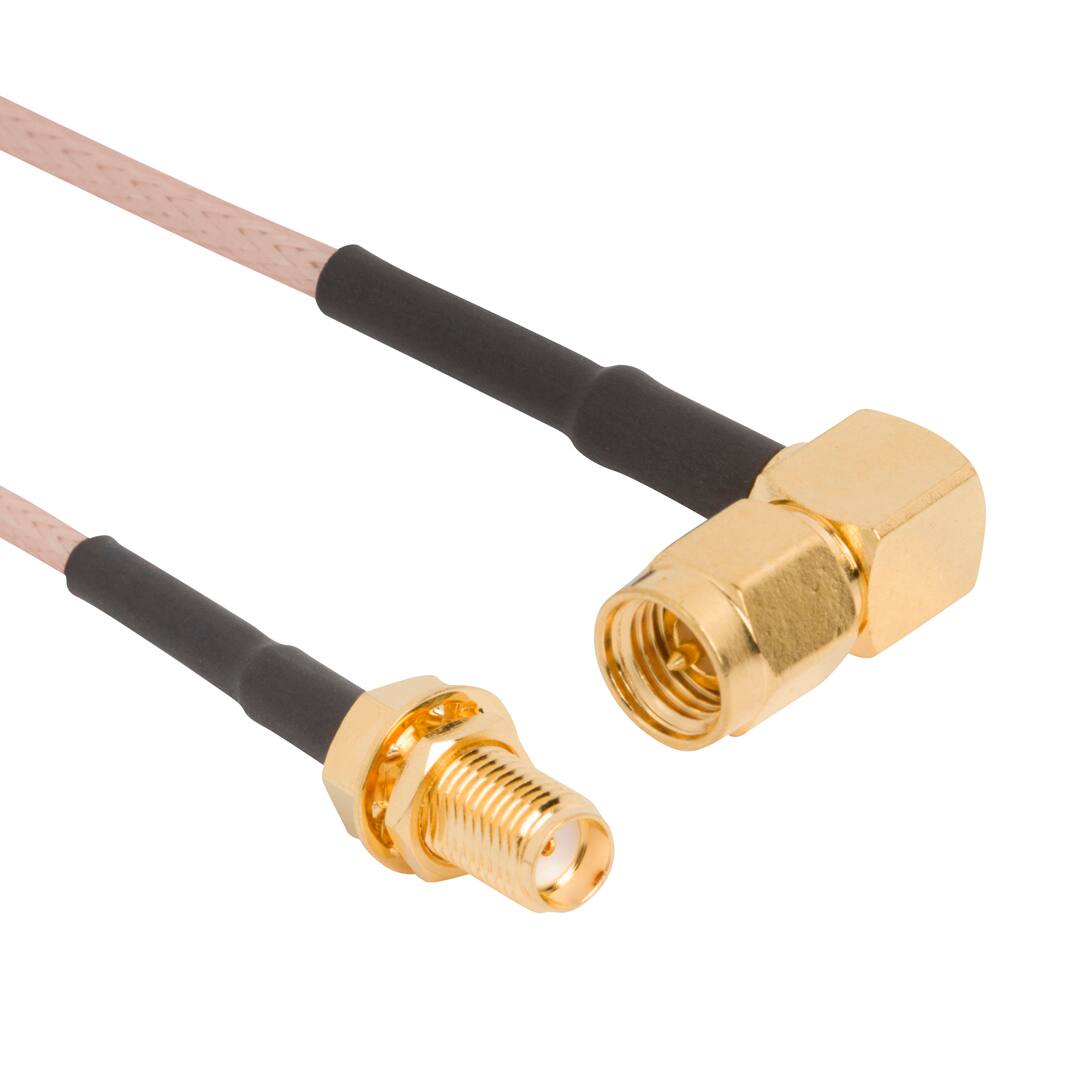

135111-01-18.00COAX CBL SMA TO SMA |
3,911 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
095-902-463-009COAX CBL SMA TO CABLE |
3,316 |
|
Datasheet | - | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
135103-03-M0.50COAX CBL SMA TO SMA |
3,604 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
