Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-206-036COAX CBL BNC TO MMCX |
1,263 |
|
Datasheet | - | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
095-850-277M050COAX CBL BNC TO BNC |
2,895 |
|
Datasheet | BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-820-124-10ZCOAX CBL AMC4 TO FAKRA SMB |
2,850 |
|
Datasheet | - | Bag | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - | - | - |
|
135110-04-12.00COAX CBL SMA TO SMA |
1,256 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
245106-02-M0.25COAX CBL SMA TO MMCX |
2,226 |
|
Datasheet | - | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
135101-04-M1.00COAX CBL SMA TO SMA |
2,170 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
115101-01-24.00COAX CBL BNC TO BNC |
2,796 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
095-902-537-006COAX CBL RP-SMA TO RP-SMA |
2,601 |
|
Datasheet | - | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|

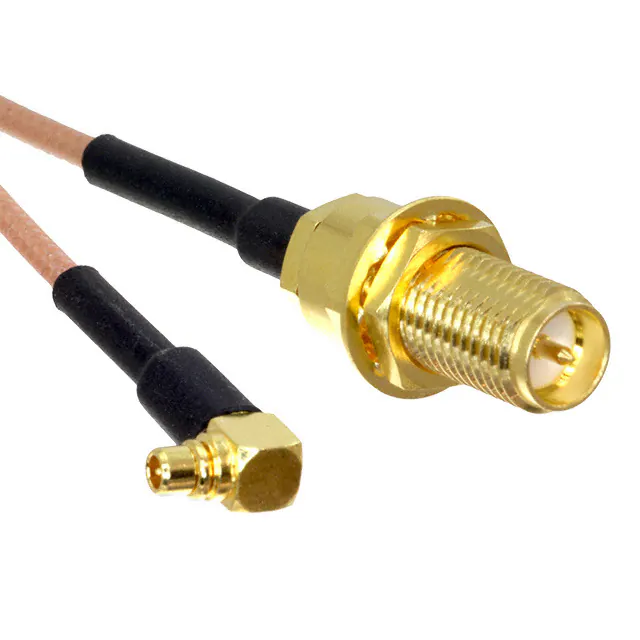

245102-08-06.00COAX CBL RP-SMA TO MMCX |
2,490 |
|
Datasheet | - | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
245101-04-M1.00COAX CBL BNC TO SMA |
1,789 |
|
Datasheet | - | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
