Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-215M500COAX CBL BNC TO HD-BNC |
3,772 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-902-530M300COAX CBL SMA TO N-TYPE |
3,326 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-293M20LCOAX CBL BNC TO BNC |
4,665 |
|
Datasheet | BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

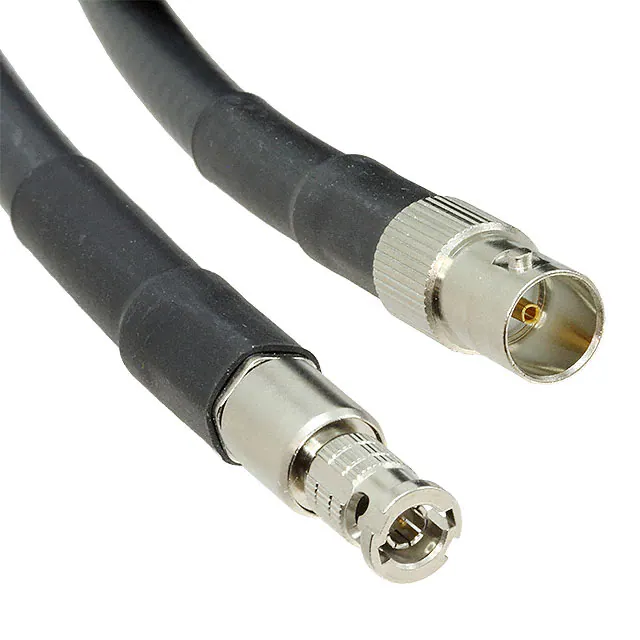

095-850-192-120COAX CBL BNC TO HD-BNC |
3,717 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-850-217M500COAX CBL BNC TO HD-BNC |
1,488 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-850-193-300COAX CBL BNC TO HD-BNC |
3,945 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-909-174-108COAX CBL N-TYPE TO N-TYPE |
3,747 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-165L050COAX CBL BNC TO BNC |
2,356 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-850-162M20LCOAX CBL BNC TO HD-BNC |
2,120 |
|
Datasheet | - | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-909-174M300COAX CBL N-TYPE TO N-TYPE |
1,947 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
