Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-909-187-036COAX CBL N-TYPE TO N-TYPE |
3,296 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
095-850-295-072COAX CBL TNC TO TNC |
2,711 |
|
Datasheet | TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-725-120-036COAX CBL SMP TO SMP |
1,611 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-222-048COAX CBL TNC TO TNC |
2,052 |
|
Datasheet | ARC | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

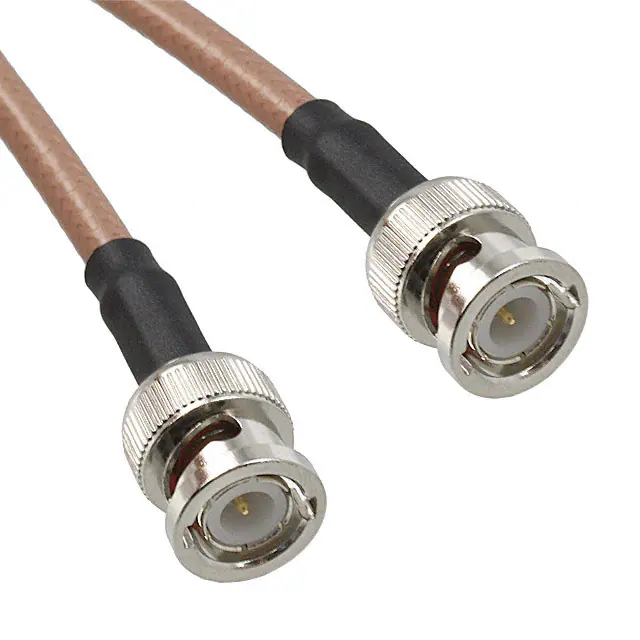

115101-07-48.00COAX CBL BNC TO BNC |
1,002 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-505-018COAX CBL SMA TO SMA |
4,962 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
095-725-127-009COAX CBL SMPM TO SMPM |
4,140 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
095-850-295M200COAX CBL TNC TO TNC |
4,792 |
|
Datasheet | TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-725-114-070COAX CBL SMPM TO SMPM |
1,024 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.000" (177.80mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
095-850-239M125COAX CBL BNC TO HD-BNC |
4,680 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 49.2" (1.3m) 4.1' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
