Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-293-180COAX CBL BNC TO BNC |
1,759 |
|
Datasheet | BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-725-117M050COAX CBL SMP TO SMP |
2,738 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-239-036COAX CBL BNC TO HD-BNC |
3,410 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-850-159M300COAX CBL HD-BNC TO HD-BNC |
3,839 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

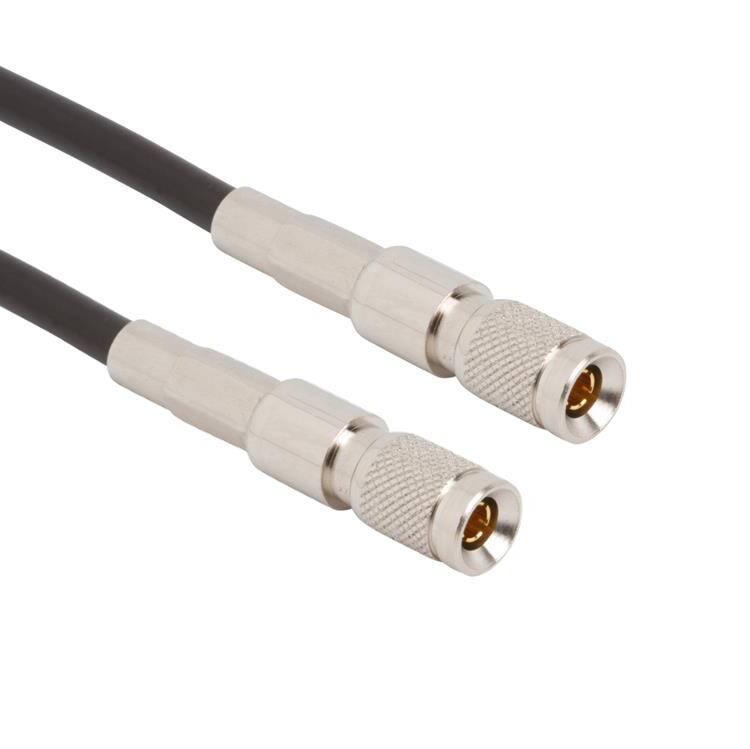

285101-06-36.00COAX CBL 1.0/2.3 TO 1.0/2.3 |
3,965 |
|
Datasheet | - | Bulk | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 8218 | - | - | 75 Ohms | - | Black | - | - | - | - |
|
095-902-481-024COAX CBL SMA TO SMA |
2,060 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-482-024COAX CBL SMA TO SMA |
3,328 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-215M125COAX CBL BNC TO HD-BNC |
3,704 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 49.2" (1.3m) 4.1' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-850-131M100COAX CBL BNC TO HD-BNC |
1,926 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | 0°C ~ 50°C | - | - |
|
095-902-475M300COAX CBL SMA TO SMA |
4,411 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
