Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

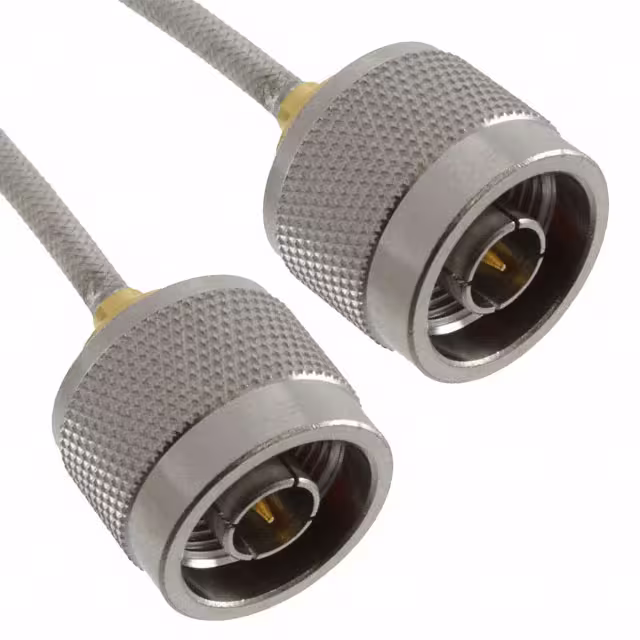

175101-R2-03.00COAX CBL N-TYPE TO N-TYPE |
1,672 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
175101-19-72.00COAX CBL N-TYPE TO N-TYPE |
3,710 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|

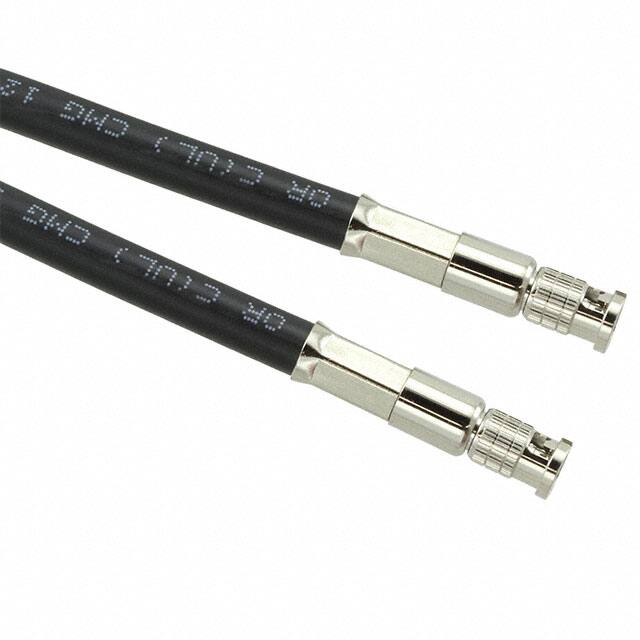

095-850-160M100COAX CBL HD-BNC TO HD-BNC |
3,814 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
095-850-279-060COAX CBL BNC TO BNC |
1,926 |
|
Datasheet | BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
175101-22-36.00COAX CBL N-TYPE TO N-TYPE |
3,165 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
095-850-159-036COAX CBL HD-BNC TO HD-BNC |
3,262 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-850-162M300COAX CBL BNC TO HD-BNC |
1,812 |
|
Datasheet | - | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
175101-R1-04.00COAX CBL N-TYPE TO N-TYPE |
4,669 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
255110-01-M4.00COAX CBL MCX TO MCX |
4,059 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 157.5" (4.0m) 13.1' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
285101-06-12.00COAX CBL 1.0/2.3 TO 1.0/2.3 |
2,694 |
|
Datasheet | - | Bulk | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 8218 | - | - | 75 Ohms | - | Black | - | - | - | - |
