Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-820-197-060COAX CBL RP-TNC TO FAKRA III |
4,619 |
|
Datasheet | - | Bag | Active | RP-TNC to Fakra III | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
245110-08-M2.00COAX CBL SMA TO MMCX |
2,139 |
|
Datasheet | - | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-178 | - | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-850-300M050COAX CBL HD-BNC TO HD-BNC |
4,020 |
|
Datasheet | - | Bag | Active | HD-BNC to HD-BNC | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Belden 4855R | - | 75 Ohms | 75 Ohms | 12 GHz | Black | - | - | - | - |
|
095-850-157-006COAX CBL 1.0/2.3 TO HD-BNC |
4,683 |
|
Datasheet | - | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
135103-R2-10.00COAX CBL SMA TO SMA |
4,726 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-825-121M300COAX CBL MHV TO MHV |
2,871 |
|
- |
- | Bag | Active | MHV to MHV | MHV Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 500 MHz | Black | - | -65°C ~ 60°C | - | - |
|
|
095-902-525M200COAX CBL SMA TO N-TYPE |
4,657 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
095-850-273M300COAX CBL TNC TO TNC |
2,689 |
|
Datasheet | TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
095-902-475-018COAX CBL SMA TO SMA |
4,339 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

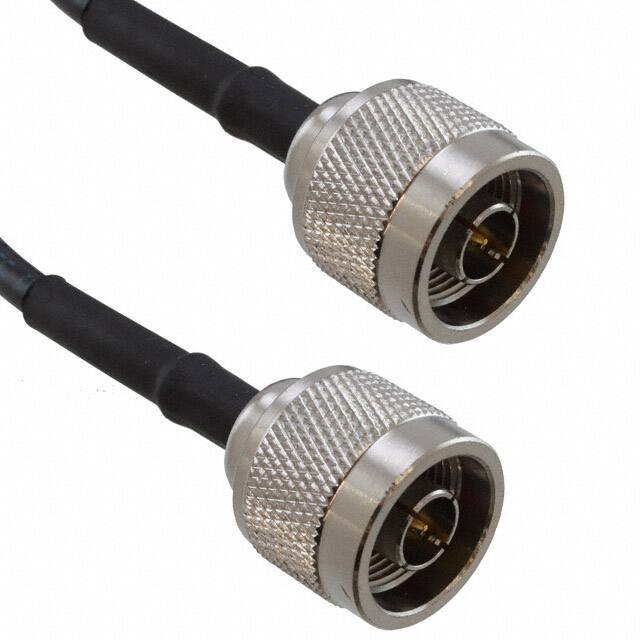

175101-19-36.00COAX CBL N-TYPE TO N-TYPE |
4,631 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
