Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-820-182M100COAX CBL MINI FAKRA-MINI FAKRA |
4,653 |
|
Datasheet | AUTOMATE™ | Bag | Active | Mini Fakra to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
115101-19-900COAX CBL BNC TO BNC |
2,546 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 900.0" (22.9m) 75.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

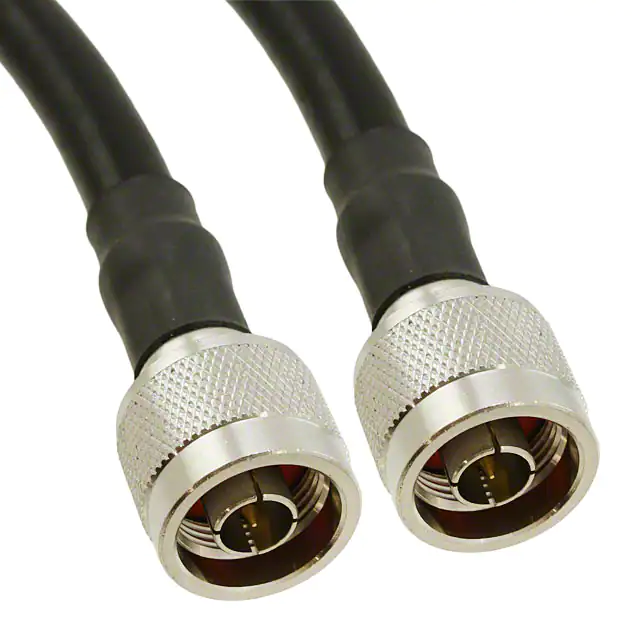

175101-10-72.00COAX CBL N-TYPE TO N-TYPE |
2,783 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | Shielded | - | - | - |
|
095-850-220M400COAX CBL TNC TO TNC |
1,656 |
|
Datasheet | ARC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-902-451-036COAX CBL SMA TO SMA |
246 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
|
115101-19-1200COAX CBL BNC TO BNC |
107 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-909-173M400COAX CBL N-TYPE TO N-TYPE |
120 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-466-004COAX CBL SMA TO SMA |
4,634 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | 50 Ohms | 20 GHz | Gray | - | -20°C ~ 75°C | - | - |
.jpg)
|
A-1PA-081-200B2COAX CBL U.FL AMC-U.FL AMC |
824 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
U-1PU-113-100B2COAX CBL AMC4 TO AMC4 |
2,356 |
|
Datasheet | USS | Bag | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
