Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5054-36COAX CBL BNC TRI TO BNC TRI |
1,475 |
|
Datasheet | - | Bulk | Active | BNC 2 Lug Triax to BNC 2 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58A | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|

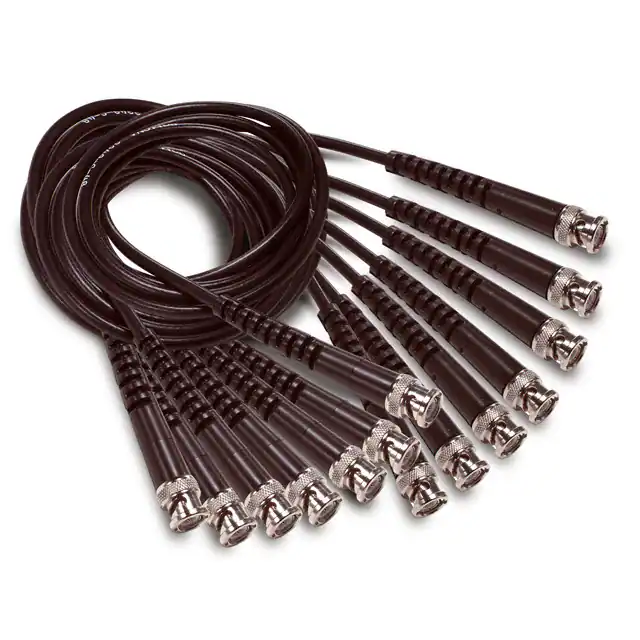

6534COAX CBL BNC TO BNC |
2,149 |
|
Datasheet | - | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | Various | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | 7 pcs per pkg, Shielded | 50°C | - | - |
|
EM5223-96#COAX CBL BNC TRI TO BNC TRI |
1,014 |
|
Datasheet | - | Bulk | Active | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
|
EM5223-240#COAX CBL BNC TRI TO BNC TRI |
1,169 |
|
Datasheet | - | Bulk | Active | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | - |
|
4846-UU-12COAX CBL SMA TO SMA |
1,541 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
72926-C-40COAX CBL BNC TO BNC |
2,628 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 40.0" (1.0m) 3.3' | RG-58C | - | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
72926-C-80COAX CBL BNC TO BNC |
2,582 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58C | - | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
5697-180COAX CBL BNC TO BNC |
1,840 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
BNC-C-18COAX CBL BNC TO BNC |
1,126 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
|
BNC-C-36COAX CBL BNC TO BNC |
4,037 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
