Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

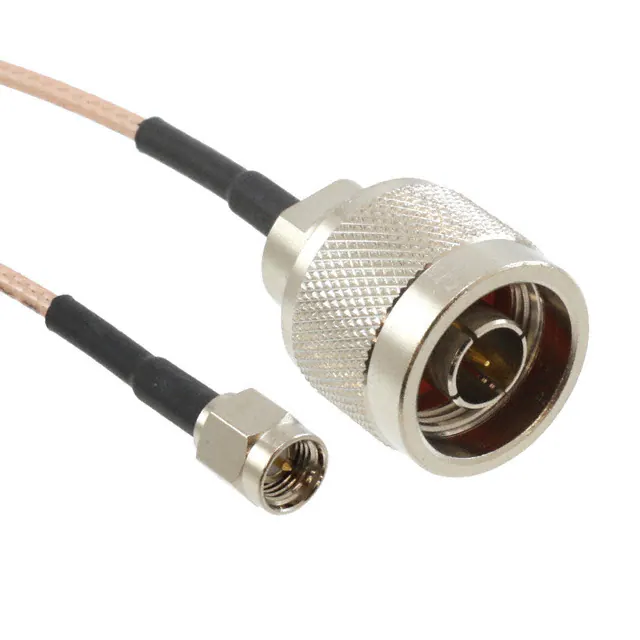

2867403COAX CBL SMA TO N-TYPE |
4,351 |
|
Datasheet | - | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 47.2" (1.2m) 3.9' | RG-316 | 50 Ohms | - | 50 Ohms | - | Beige | Shielded | -70°C ~ 200°C | - | - |
|
2700677COAX CBL N-TYPE TO N-TYPE |
2,819 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RADOX® (LSZH) | - | - | 50 Ohms | - | Black | - | -40°C ~ 105°C | - | - |
|

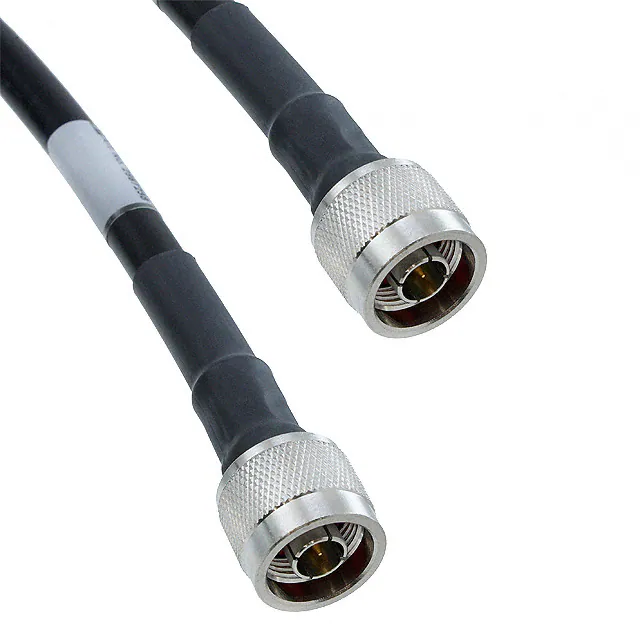

2867225COAX CBL N-TYPE TO N-TYPE |
2,558 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 590.6" (15.0m) 49.2' | RG-213 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 80°C | - | - |
|
1340147COAX CBL SMA TO N-TYPE |
2,944 |
|
Datasheet | - | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | - | - | - | 50 Ohms | 7.25 GHz | Black | - | - | - | - |
|
|
1340149COAX CBL SMA TO SMA |
1,135 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | - | - | - | 50 Ohms | 7.25 GHz | Black | - | - | - | - |
|
2867694COAX CBL SMA TO N-TYPE |
4,423 |
|
Datasheet | - | Bulk | Obsolete | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | EF 316 | - | - | 50 Ohms | 2.4 GHz | Blue | Shielded | -40°C ~ 70°C | - | - |
|
|
2867665COAX CBL N-TYPE TO N-TYPE |
1,216 |
|
Datasheet | - | Bulk | Obsolete | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | RADOX® (LSZH) | - | - | 50 Ohms | 2.4 GHz | Black | Shielded | -40°C ~ 105°C | - | - |
|
|
2885634COAX CBL N-TYPE TO N-TYPE |
1,584 |
|
Datasheet | - | Bulk | Obsolete | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 590.6" (15.0m) 49.2' | RADOX® (LSZH) | - | - | 50 Ohms | 2.4 GHz | Black | - | -40°C ~ 105°C | - | - |
|

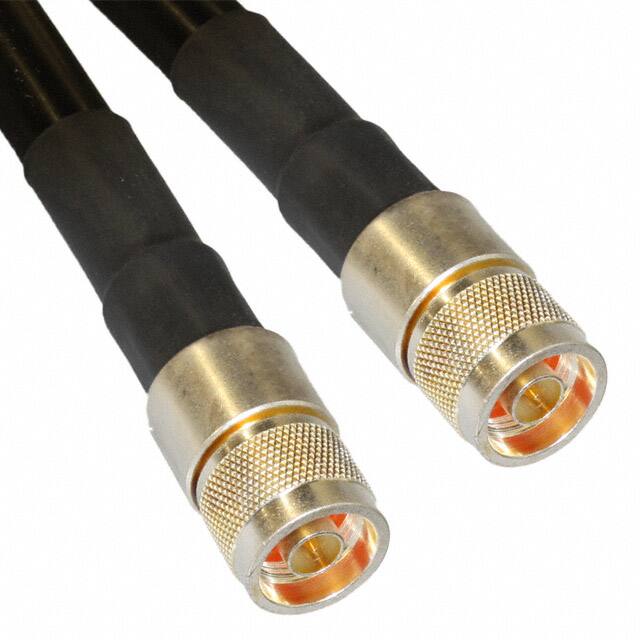

2885184COAX CBL N-TYPE TO N-TYPE |
4,390 |
|
Datasheet | - | Bulk | Obsolete | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
2701402COAX CBL RP-SMA TO N-TYPE |
2,910 |
|
Datasheet | - | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RADOX® (LSZH) | - | - | 50 Ohms | 5 GHz | Blue | - | -40°C ~ 70°C | - | - |
