Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4052-8COAX CBL SMA TO MMBX |
2,777 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4052-6COAX CBL SMA TO MMBX |
3,595 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4063-18COAX CBL SMA TO MMBX |
4,642 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4061-18COAX CBL SMA TO MMBX |
3,428 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE39416-6SMA Male Right Angle to SMA Male |
3,936 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | Silver | - | - | - | - |
|
|
PE3C7847-24N Male Right Angle to N Female L |
2,120 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C7844-36N Male to N Female Low PIM Cable |
4,160 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
PE3C6215-200CMCOAX CBL SMA TO N-TYPE |
3,192 |
|
Datasheet | - | Bag | Active | SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|

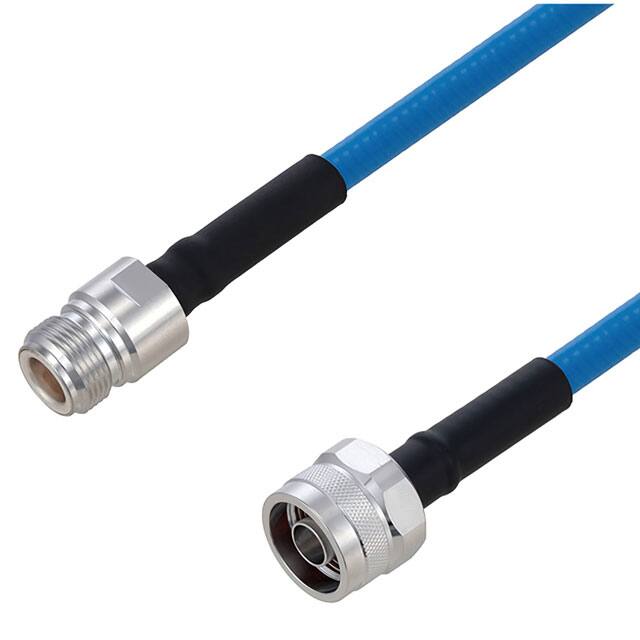

PE3C6200-100CMCOAX CBL N-TYPE TO N-TYPE |
1,768 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C7862COAX CBL 2.2-5 TO 2.2-5 |
3,200 |
|
Datasheet | - | Retail Package | Active | 2.2-5 to 2.2-5 | 2.2-5 Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 2.2-5 Jack | Female | Panel Mount | Bulkhead - Front Side Nut | - | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
