Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W04703-36N Male to N Male Low Loss Cable |
157 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C2462/HS-36COAX CBL N-TYPE TO N-TYPE |
146 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3W01878/HS-36COAX CBL BNC TO BNC |
146 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|

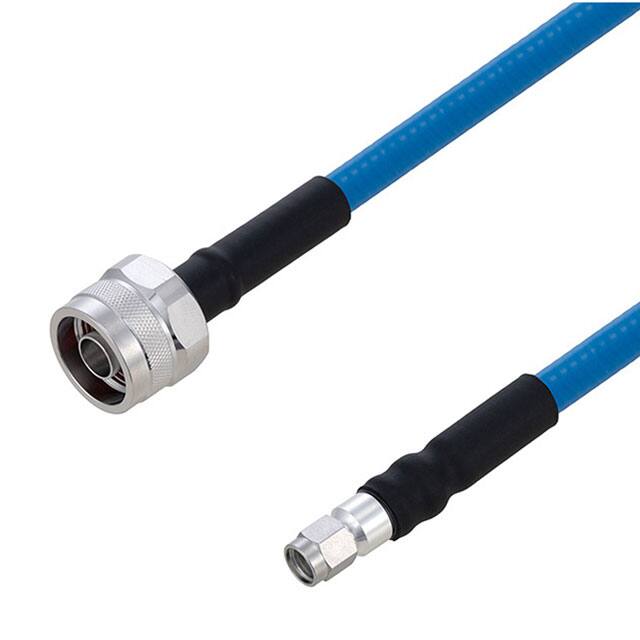

PE3C6213-48COAX CBL SMA TO N-TYPE |
144 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE39035-6SMC Jack Bulkhead to UMCX Plug C |
144 |
|
Datasheet | - | Retail Package | Active | SMC to UMCX | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE39035-18SMC Jack Bulkhead to UMCX Plug C |
144 |
|
Datasheet | - | Retail Package | Active | SMC to UMCX | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE3149-24COAX CBL SMA TO SMA |
139 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34035-48COAX CBL BNC TO BNC |
139 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34683-24COAX CBL SMB MINI-SMB MINI |
139 |
|
Datasheet | - | Retail Package | Active | SMB Mini to SMB Mini | SMB Mini Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3C4028-12COAX CBL SMA TO MMBX |
139 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
