Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4413-72COAX CBL BNC TO SSMC |
214 |
|
Datasheet | - | Retail Package | Active | BNC to SSMC | BNC Plug | Male | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3W06055-48COAX CBL SMA TO SSMC |
214 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Jack | Female | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE3C4426-18COAX CBL SMA TO SSMC |
214 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Jack | Female | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|

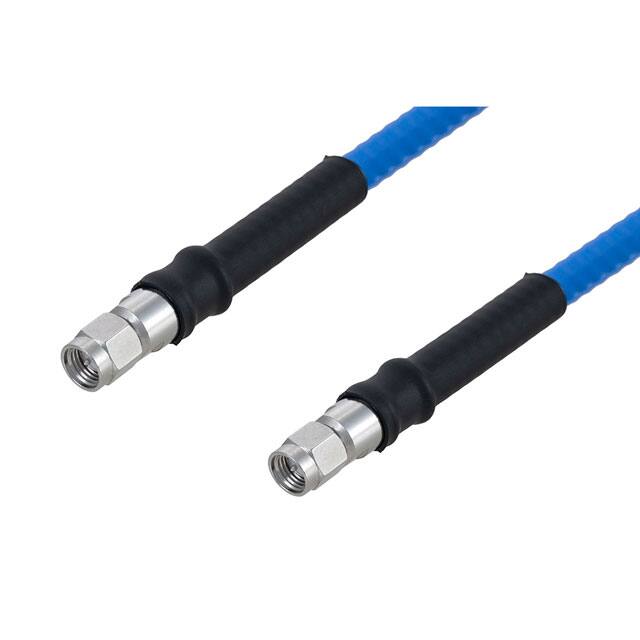

PE3C5888-100CMCOAX CBL SMA TO SMA |
210 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3W12494/HS-200CMSMA Male to SMA Male Low Loss Ca |
207 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3376-60COAX CBL SMC TO SMC |
190 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3376LF-36COAX CBL SMC TO SMC |
190 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3W03935-12COAX CBL BNC TO N-TYPE |
190 |
|
Datasheet | - | Retail Package | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE35247-36COAX CBL RP-TNC TO N-TYPE |
185 |
|
Datasheet | - | Retail Package | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE35238-36COAX CBL RP-TNC TO TNC |
185 |
|
Datasheet | - | Retail Package | Active | RP-TNC to TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
