Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

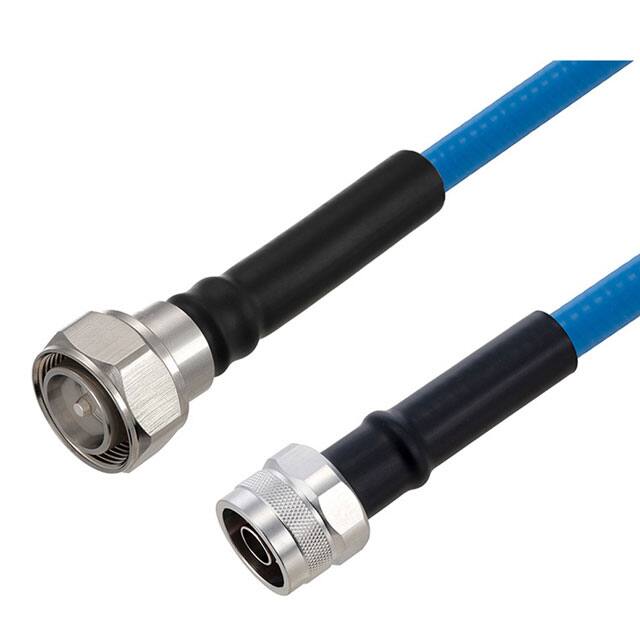

PE3C6382-12COAX CBL 4.3/10 TO N-TYPE |
4,576 |
|
Datasheet | - | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -55°C ~ 200°C | - | - |
|

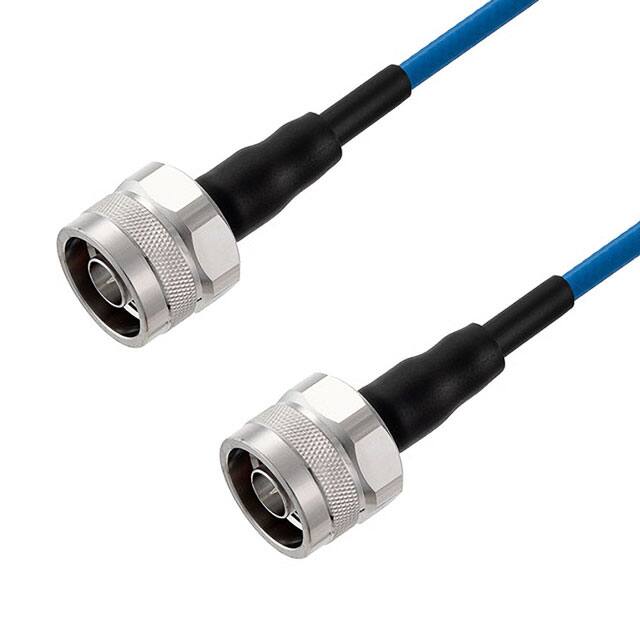

PE3C7966-12COAX CBL N-TYPE TO N-TYPE |
4,671 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
PE3C6368-50CMCOAX CBL 7/16 DIN TO 7/16 DIN |
4,630 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6211-12COAX CBL SMA TO N-TYPE |
4,135 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|

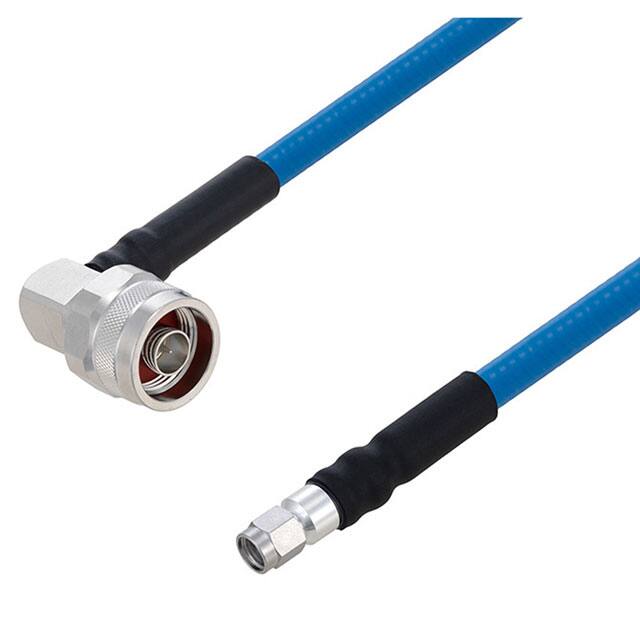

PE3C6209-24COAX CBL SMA TO N-TYPE |
1,786 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6205-36COAX CBL N-TYPE TO N-TYPE |
3,278 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6368-150CMCOAX CBL 7/16 DIN TO 7/16 DIN |
4,639 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6638-36COAX CBL 1.85MM TO 1.85MM |
4,357 |
|
Datasheet | - | Retail Package | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 65 GHz | Gray | - | -45°C ~ 125°C | - | - |
|
|
PE3TC0900-36COAX CBL 1.85MM TO 1.85MM |
2,376 |
|
Datasheet | - | Retail Package | Active | 1.85mm to 1.85mm | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | VNA | 50 Ohms | 50 Ohms | 50 Ohms | 70 GHz | Black | - | -65°C ~ 125°C | - | - |
|
|
PE3425LF-72COAX CBL TNC TO TNC |
3,728 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
