Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

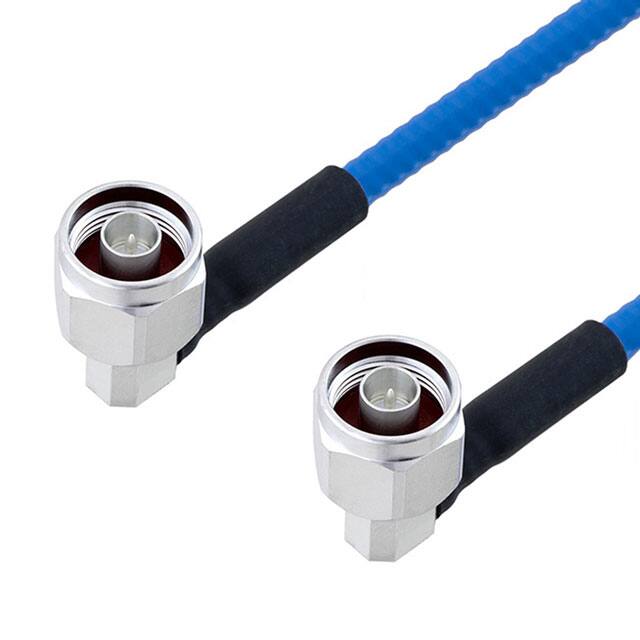

PE3C4145-12COAX CBL N-TYPE TO N-TYPE |
3,425 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3W00393-200CMBNC Male to BNC Male Cable 200 C |
198 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-303 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3062-108COAX CBL N-TYPE TO N-TYPE |
1,323 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | - | - | - |
|
|
PE3098LF-72COAX CBL MHV TO MHV |
157 |
|
Datasheet | - | Retail Package | Active | MHV to MHV | MHV Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W09855-18COAX CBL SMA TO N-TYPE |
3,135 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | - | - | - |
|
|
PE3117LF-24COAX CBL SHV TO SHV |
552 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | -20°C ~ 80°C | - | - |
|
PE3C5887-200CMCOAX CBL SMA TO N-TYPE |
216 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C4571-12COAX CBL SMA TO SMP MINI |
530 |
|
Datasheet | - | Retail Package | Active | SMA to SMP Mini | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Mini Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.086" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | - | - | - |
|
|
PE3W11522-24COAX CBL RP-SMA TO SMP |
2,433 |
|
Datasheet | - | Retail Package | Active | RP-SMA to SMP | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3062-72COAX CBL N-TYPE TO N-TYPE |
1,323 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | -20°C ~ 80°C | - | - |
