Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4426-24COAX CBL SMA TO SSMC |
214 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Jack | Female | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|

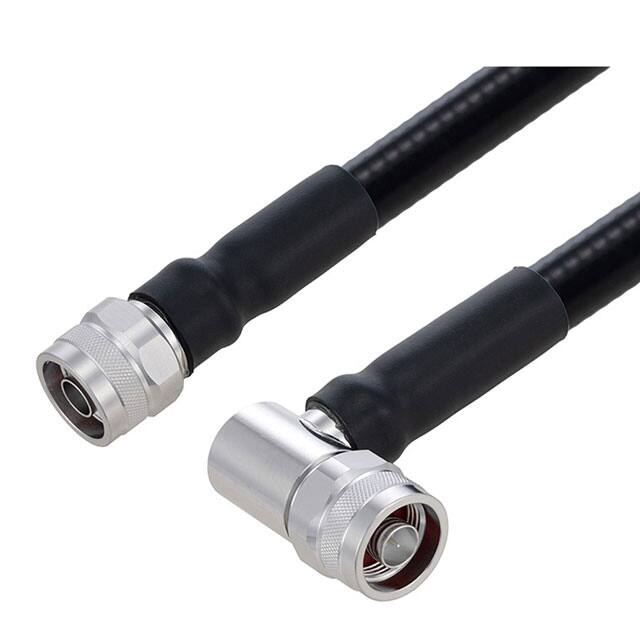

PE3C6372-48COAX CBL N-TYPE TO N-TYPE |
193 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3376-12COAX CBL SMC TO SMC |
190 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3W03361-60COAX CBL RP-TNC TO FAKRA |
185 |
|
Datasheet | - | Retail Package | Active | RP-TNC to Fakra | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE3C6788-150CMCOAX CBL BNC TO MCX |
169 |
|
Datasheet | - | Retail Package | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C4431-36BNC Male to SSMC Plug Right Angl |
139 |
|
Datasheet | - | Retail Package | Active | BNC to SSMC | BNC Plug | Male | Free Hanging (In-Line) | - | SSMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE39348D-36COAX CBL SMA TO FAKRA |
134 |
|
Datasheet | - | Retail Package | Active | SMA to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3818-24COAX CBL SMA TO SMA |
126 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Copper | - | - | - | - |
|
|
PE38502-6COAX CBL MCX TO UMCX |
121 |
|
Datasheet | - | Retail Package | Active | MCX to UMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C4019-8COAX CBL SMA TO MMBX |
121 |
|
Datasheet | - | Retail Package | Active | SMA to MMBX | SMA Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
