Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W13912-36COAX CBL N-TYPE TO N-TYPE |
4,712 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W00076LF-12COAX CBL RP-N-TYPE TO RP-N-TYPE |
2,534 |
|
Datasheet | - | Retail Package | Active | RP-N-Type to RP-N-Type | RP-N-Type Plug | Female | Free Hanging (In-Line) | - | RP-N-Type Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3C4950-36COAX CBL BMA TO BMA |
4,891 |
|
Datasheet | - | Retail Package | Active | BMA to BMA | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Tan | - | - | - | - |
|

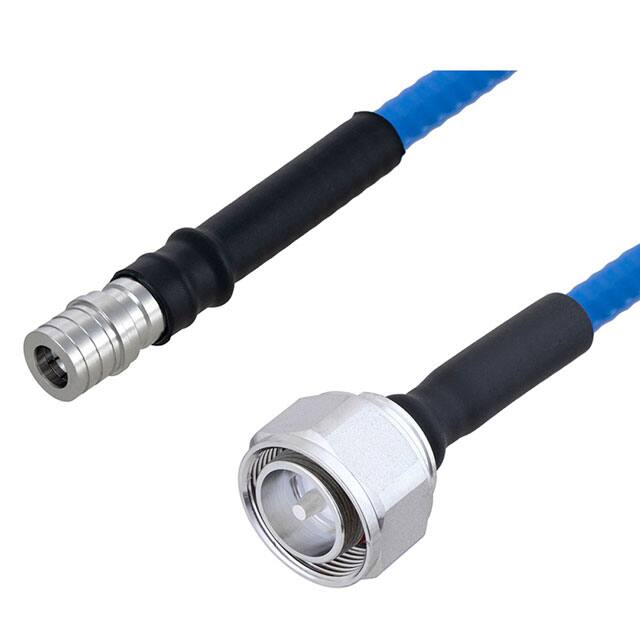

PE3C5865-36COAX CBL 4.3/10 TO QMA |
1,827 |
|
Datasheet | - | Bag | Active | 4.3/10 to QMA | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C9492-36COAX CBL SHV TO SHV |
2,639 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3M0028-24COAX CBL TNC TO TNC |
2,992 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | - | - | -55°C ~ 165°C | - | - |
|
|
PE33426LF-7275 Ohm BNC Male Right Angle to 7 |
2,042 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-6A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
PE36572LF-48SSMA Male Right Angle to SSMA Ma |
3,029 |
|
Datasheet | - | Retail Package | Active | SSMA to SSMA | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE36572-36SSMA Male Right Angle to SSMA Ma |
3,228 |
|
Datasheet | - | Retail Package | Active | SSMA to SSMA | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE36572-24SSMA Male Right Angle to SSMA Ma |
2,054 |
|
Datasheet | - | Retail Package | Active | SSMA to SSMA | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SSMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
