Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3MSA00404-12Halogen Free Bend Relief 3-Lug T |
4,666 |
|
Datasheet | - | Retail Package | Active | TRB to Cable | TRB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 12.00" (304.80mm) | - | 78 Ohms | - | 78 Ohms | 500 MHz | Blue | - | -30°C ~ 80°C | - | - |
|
|
PE3MSA00401-24COAX CBL TRB TO CABLE |
2,004 |
|
Datasheet | - | Retail Package | Active | TRB to Cable | TRB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 24.00" (609.60mm) | - | 78 Ohms | - | 78 Ohms | 500 MHz | Blue | - | -30°C ~ 80°C | - | - |
|
|
PE3MP2624-36COAX CBL TRB TO TRB |
3,023 |
|
Datasheet | - | Retail Package | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | - | 78 Ohms | 78 Ohms | 78 Ohms | 400 MHz | Blue | - | -20°C ~ 75°C | - | - |
|
|
PE3C10408-48Fire Rated BNC Male Right Angle |
4,101 |
|
- |
- | Retail Package | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C9787-1210KV Male to MHV Female Cable 12 |
2,810 |
|
- |
- | Retail Package | Active | 10KV to MHV | 10KV Plug | Male | Free Hanging (In-Line) | - | MHV Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-303 | 50 Ohms | 50 Ohms | 50 Ohms | - | Red | - | - | - | - |
|
|
PE3C6967-60COAX CBL SMA TO N-TYPE |
4,903 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|

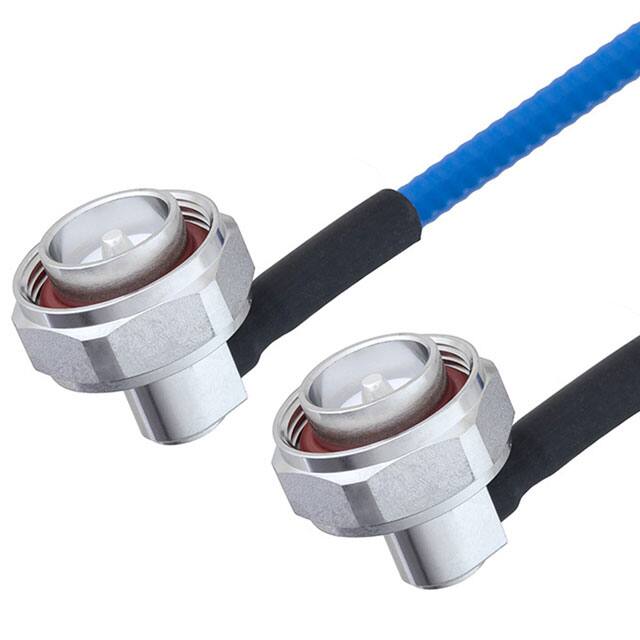

PE3C4144-24COAX CBL 7/16 DIN TO 7/16 DIN |
2,253 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C6568-60COAX CBL RP-N-TYPE TO RP-TNC |
4,566 |
|
Datasheet | - | Retail Package | Active | RP-N-Type to RP-TNC | RP-N-Type Plug | Female | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3524LF-48COAX CBL SMA TO SMA |
4,737 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
PE37943-100CMN Male to N Male Cable 100 cm Le |
2,255 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
