Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3M0001-36MIL-DTL-17 BNC Male to BNC Male |
1,858 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | - | -55°C ~ 165°C | - | - |
|
|
PE3M0057-30MIL-DTL-17 BNC Male to BNC Male |
1,909 |
|
- |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | - | - | -55°C ~ 165°C | - | - |
|
|
PE3CA1042-36COAX CBL SMA TO SMA |
4,879 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 27 GHz | - | - | -40°C ~ 150°C | - | - |
|
|
PE3C9511-12COAX CBL SHV TO SHV |
2,531 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3C9499-36COAX CBL SHV TO SHV |
4,049 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE33426LF-1275 Ohm BNC Male Right Angle to 7 |
2,463 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-6A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
PE3W06520/HS-12SMP Female Right Angle to SMA Fe |
4,356 |
|
Datasheet | - | Retail Package | Active | SMA to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE3C9490-36COAX CBL SHV TO SHV |
3,026 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE34509LF-72SMC Plug to SMC Jack Bulkhead Ca |
1,679 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

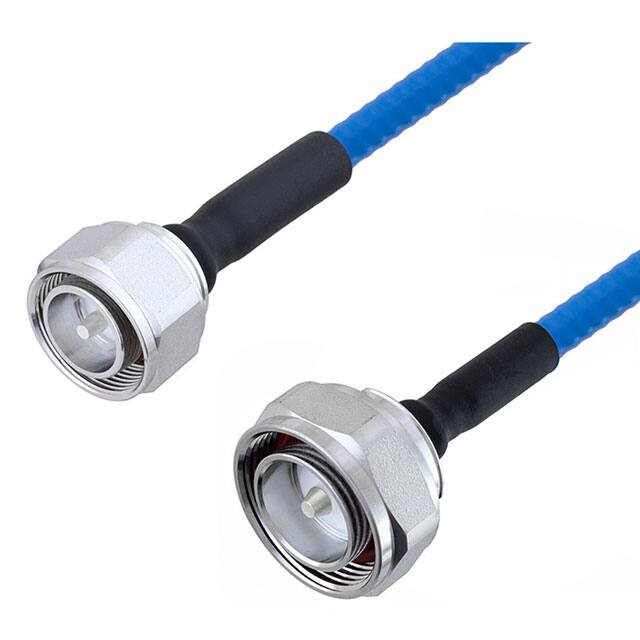

PE3C4135-60COAX CBL 4.3/10 TO 7/16 DIN |
1,857 |
|
Datasheet | - | Bag | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
