Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4872-24COAX CBL BMA TO BMA |
3,021 |
|
Datasheet | - | Retail Package | Active | BMA to BMA | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 12 GHz | Copper | - | - | - | - |
|
|
PE3M0001-24COAX CBL 3.5MM TO 3.5MM |
4,751 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | - | -55°C ~ 165°C | - | - |
|
|
PE3M0001-30MIL-DTL-17 BNC Male to BNC Male |
4,035 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | - | -55°C ~ 165°C | - | - |
|
|
PE3C9501-12SHV Jack to SHV Jack Cable 12 In |
4,924 |
|
- |
- | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Tan | - | - | - | - |
|
|
PE3C9506-24COAX CBL SHV TO SHV |
2,978 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE34465LF-60SMB Plug Right Angle to SMB Plug |
2,001 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34486-60SMC Plug Right Angle to SMC Jack |
2,455 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C9499-12COAX CBL SHV TO SHV |
1,274 |
|
Datasheet | - | Retail Package | Active | SHV to SHV | SHV Jack | Female | Free Hanging (In-Line) | - | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3C0064-12COAX CBL N-TYPE TO N-TYPE |
2,811 |
|
Datasheet | - | Retail Package | Active | SMA to MMCX | SMA Jack | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

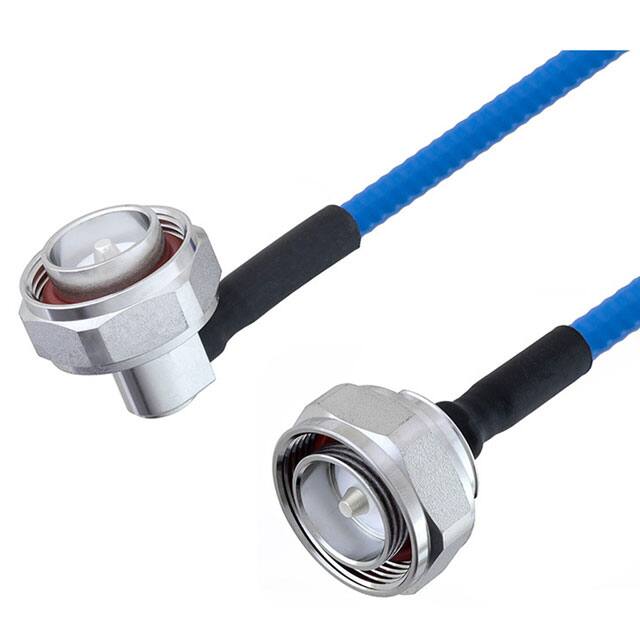

PE3C4131-24COAX CBL 7/16 DIN TO 7/16 DIN |
1,878 |
|
Datasheet | - | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
