Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W17877-60COAX CBL SMP TO SMP |
1,250 |
|
Datasheet | - | Retail Package | Active | NEX to NEX | NEX10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | NEX10 Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 155°C | - | - |
|
|
PE3C1876-36COAX CBL SMA TO SMA |
2,191 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | - | - | - |
|
|
PE34834LF-48COAX CBL SMA TO SMA |
2,619 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34834-48COAX CBL SMA TO SMA |
2,182 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W07011/HS-36SSMB Jack Bulkhead to SMP Female |
2,057 |
|
Datasheet | - | Retail Package | Active | SSMB to SMP | SSMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-196 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | White | - | -55°C ~ 155°C | - | - |
|
|
PE3W08804/HS-24SMA Male to Reverse Polarity SMA |
2,579 |
|
- |
- | Retail Package | Active | RP-SMA to SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|

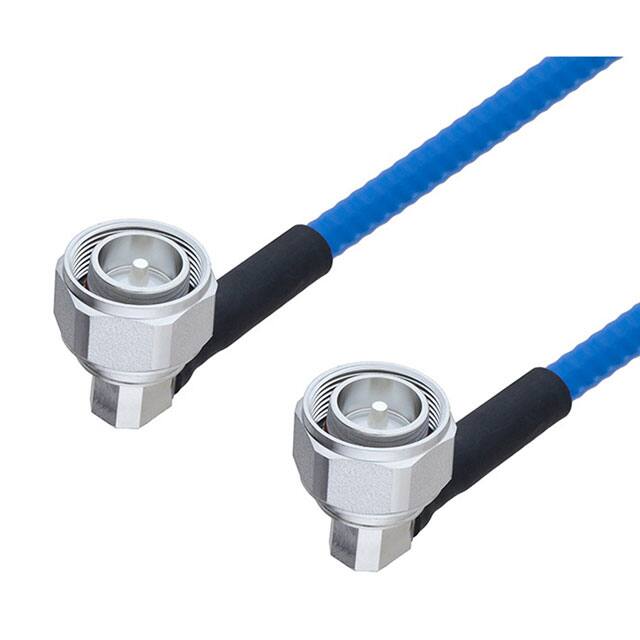

PE3C4146-12COAX CBL 4.3/10 TO 4.3/10 |
4,451 |
|
Datasheet | - | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3TC1202-100CMCOAX CBL F-TYPE TO F-TYPE |
3,533 |
|
Datasheet | - | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | - | - | - | - | - |
|
|
PE3C4961-36COAX CBL BMA TO TNC |
3,311 |
|
Datasheet | - | Retail Package | Active | BMA to TNC | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
PE3W06872LF/HS-12N Male to QN Male Right Angle Ca |
2,381 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Plug | Male | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
