Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W01570-200CMCOAX CBL BNC TO MCX |
4,977 |
|
Datasheet | - | Retail Package | Active | BNC to MCX | BNC Jack (4) | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Tan | - | - | - | - |
|
|
PE3W09391/HS-24Reverse Polarity SMA Plug to Rev |
3,520 |
|
Datasheet | - | Retail Package | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C0192/HS-48COAX CBL N-TYPE TO N-TYPE |
4,990 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C9843-48MCX Plug to MCX Plug Right Angle |
3,371 |
|
Datasheet | - | Retail Package | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4132-50CMCOAX CBL 7/16 DIN TO N-TYPE |
4,887 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | - | - | - |
|
|
PE3W04619-36COAX CBL N-TYPE TO QN |
1,319 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Jack | Female | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|

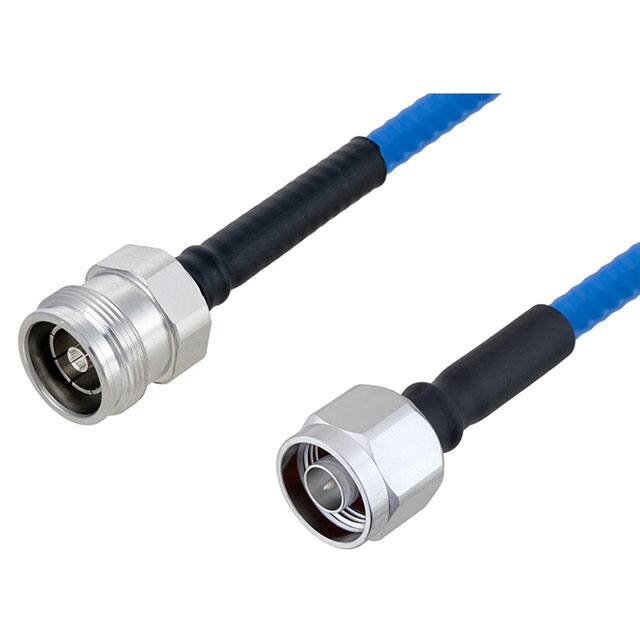

PE3C5837-36COAX CBL 4.3/10 TO N-TYPE |
4,153 |
|
Datasheet | - | Bag | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C6424-36COAX CBL UHF TO UHF |
1,668 |
|
Datasheet | - | Retail Package | Active | UHF to UHF | UHF Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE3W00089-60COAX CBL SMA TO SMA |
2,884 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-402 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
PE3W05453-18COAX CBL N-TYPE TO N-TYPE |
4,414 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
