Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C6196-48COAX CBL 7/16 DIN TO N-TYPE |
3,560 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6198-48COAX CBL 7/16 DIN TO N-TYPE |
3,901 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6236-36COAX CBL 4.3/10 TO 7/16 DIN |
3,824 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C4452-36COAX CBL N-TYPE TO SSMC |
4,780 |
|
Datasheet | - | Retail Package | Active | N-Type to SSMC | N-Type Plug | Male | Free Hanging (In-Line) | - | SSMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | - | - | - |
|
|
PE3C4488-24COAX CBL BNC TO SSMC |
2,499 |
|
Datasheet | - | Retail Package | Active | BNC to SSMC | BNC Plug | Male | Free Hanging (In-Line) | - | SSMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|

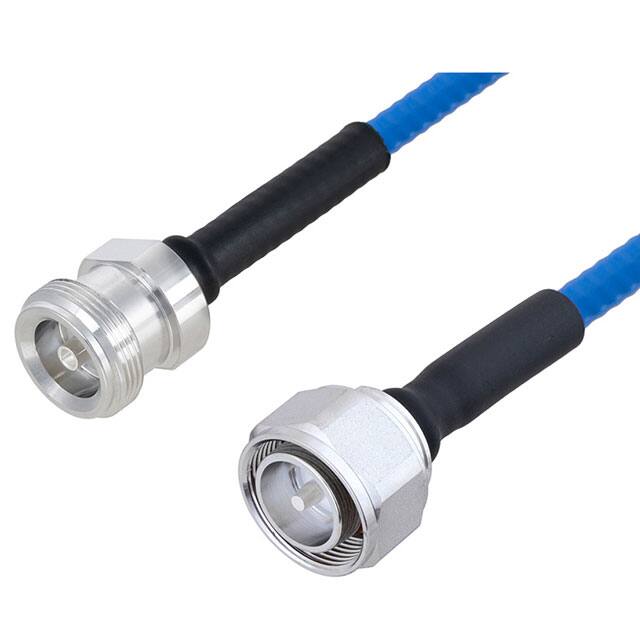

PE3C5840-50CMCOAX CBL 4.1/9.5 TO 4.3/10 |
4,092 |
|
Datasheet | - | Bag | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|

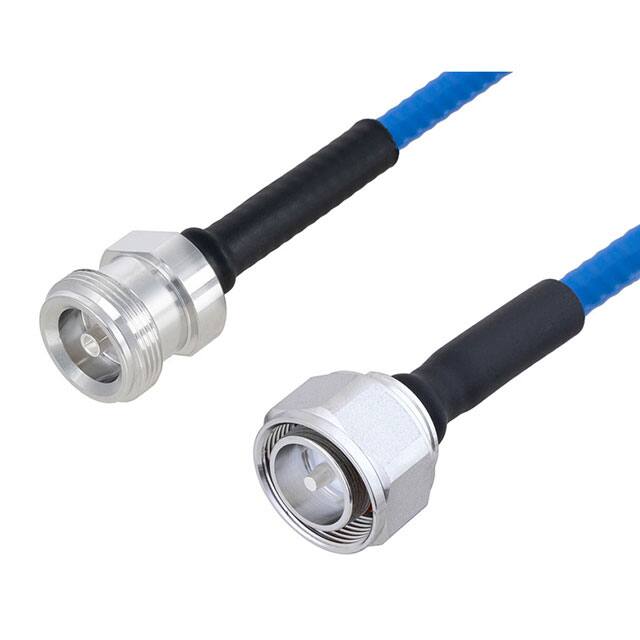

PE3C5840-24COAX CBL 4.1/9.5 TO 4.3/10 |
1,363 |
|
Datasheet | - | Bag | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3223-24COAX CBL SMA TO SMA |
1,539 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE3W08550LF/HS-12SSMC Plug to SMA Female Bulkhead |
2,609 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SSMC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -45°C ~ 120°C | - | - |
|
|
PE3C6191-150CMPlenum 7/16 DIN Male to N Female |
3,532 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
