Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W04623-100CMCOAX CBL RP-SMA TO SMA |
3,975 |
|
Datasheet | - | Retail Package | Active | RP-SMA to SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|
|
PE3W01570-60COAX CBL BNC TO MCX |
2,522 |
|
Datasheet | - | Retail Package | Active | BNC to MCX | BNC Jack (4) | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Tan | - | - | - | - |
|
|
PE3W01570-150CMCOAX CBL BNC TO MCX |
3,685 |
|
Datasheet | - | Retail Package | Active | BNC to MCX | BNC Jack (4) | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Tan | - | - | - | - |
|
|
PE3C6348-60COAX CBL 2.92MM TO 2.92MM |
1,858 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3W04623-200CMCOAX CBL RP-SMA TO SMA |
1,237 |
|
Datasheet | - | Retail Package | Active | RP-SMA to SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|
|
PE3C4890-24COAX CBL BMA TO TNC |
3,611 |
|
Datasheet | - | Retail Package | Active | BMA to TNC | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | - | - | - |
|
|
PE3C6445-50CMCOAX CBL 4.3/10 TO 4.3/10 |
1,346 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C6348-150CMFire Rated 4.3-10 Female to 4.3- |
2,896 |
|
- |
- | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|

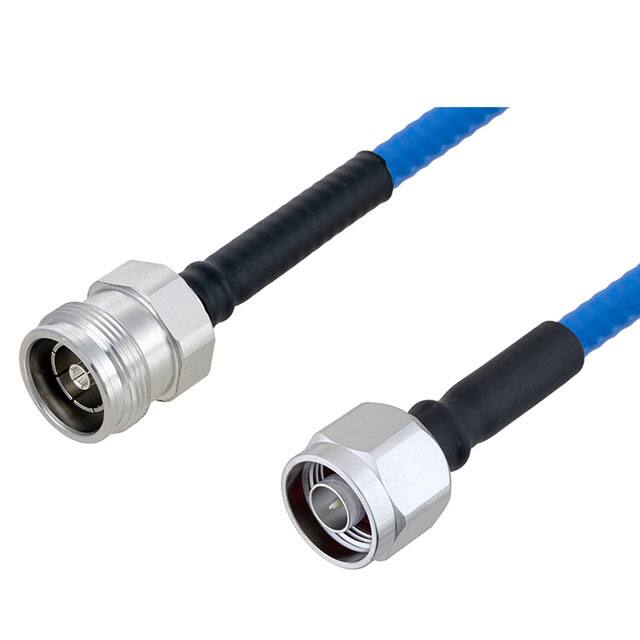

PE3C5837-24COAX CBL 4.3/10 TO N-TYPE |
1,255 |
|
Datasheet | - | Bag | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C7827-100CMCOAX CBL 4.3/10 TO 4.3/10 |
2,001 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
