Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C7855-24NEX10 Male Right Angle to NEX10 |
2,621 |
|
Datasheet | - | Retail Package | Active | NEX to NEX | NEX10 Jack | Female | Panel Mount | Bulkhead - Front Side Nut | NEX10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3307LF-48COAX CBL N-TYPE TO N-TYPE |
3,528 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3W00707/HS-48N Female to UHF Male Low Loss Ca |
2,878 |
|
Datasheet | - | Retail Package | Active | N-Type to UHF | N-Type Jack | Female | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C5886-36COAX CBL 7/16 DIN TO SMA |
2,808 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|

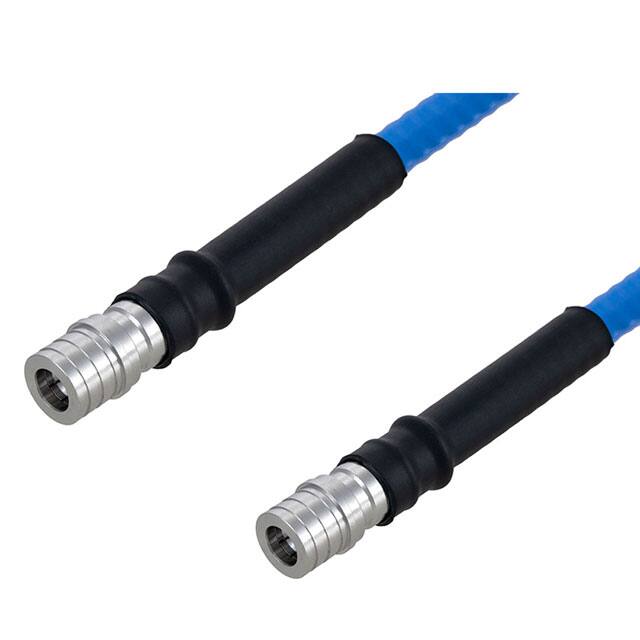

PE3C5869-48COAX CBL QMA TO QMA |
1,106 |
|
Datasheet | - | Bag | Active | QMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C6510-100CMCOAX CBL 7/16 DIN TO 7/16 DIN |
3,554 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C8748/BK-300COAX CBL 1.0/2.3 TO HD-BNC |
1,707 |
|
Datasheet | - | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE3C7833-50CM4.3-10 Male Right Angle to 4.3-1 |
2,647 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 1/4" Superflexible Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C8056-242.2-5 Female to 4.3-10 Male Righ |
3,115 |
|
Datasheet | - | Retail Package | Active | 2.2/5 to 4.3/10 | 2.2/5 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C7832-244.3-10 Male Right Angle to 4.3-1 |
2,637 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
