Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4598-48COAX CBL TNC TO TNC |
3,520 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3W08827-12SMA Male Right Angle to SMA Male |
1,739 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | PE-SR402FLJ | 50 Ohms | 50 Ohms | - | 12.4 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
PE3C4890-12COAX CBL BMA TO TNC |
4,815 |
|
Datasheet | - | Retail Package | Active | BMA to TNC | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | - | - | - |
|
|
PE3C6380-100CMCOAX CBL 4.3/10 TO 4.3/10 |
3,418 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPP-375LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | - | - | - |
|
|
PE3W12949-36COAX CBL N-TYPE TO N-TYPE |
4,216 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Black | - | - | - | - |
|

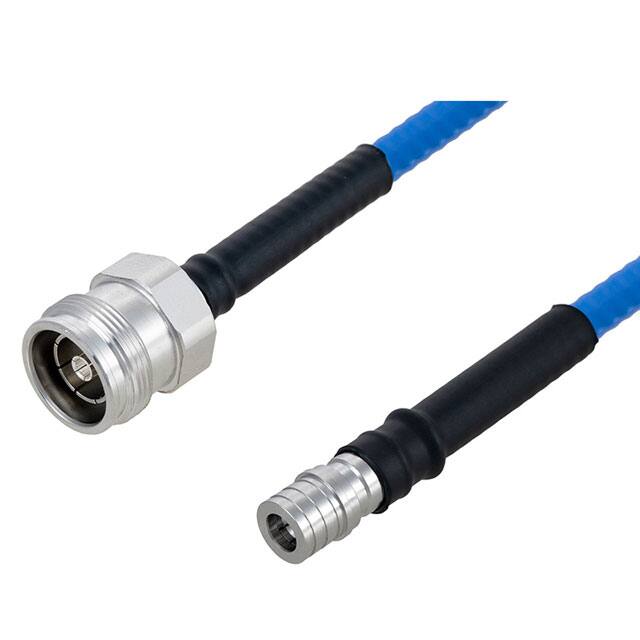

PE3C5838-12COAX CBL 4.3/10 TO QMA |
2,748 |
|
Datasheet | - | Bag | Active | 4.3/10 to QMA | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3C7827-12COAX CBL 4.3/10 TO 4.3/10 |
1,151 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3W03661LF-60COAX CBL SMA TO SMA |
4,513 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
PE3C6383-36COAX CBL 7/16 DIN TO 7/16 DIN |
1,379 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | SPP-375LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3CA2219-3678 Ohm 3-Slot TRB Solder/Clamp P |
4,492 |
|
- |
- | Retail Package | Active | TRB to Cable | TRB Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 36.00" (914.40mm) | - | 78 Ohms | 78 Ohms | 78 Ohms | 400 MHz | Blue | - | - | - | - |
