Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C4961-6COAX CBL BMA TO TNC |
4,537 |
|
Datasheet | - | Retail Package | Active | BMA to TNC | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
PE3C4959-24COAX CBL BMA TO N-TYPE |
3,207 |
|
Datasheet | - | Retail Package | Active | BMA to N-Type | BMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
PE34465LF-24SMB Plug Right Angle to SMB Plug |
3,407 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

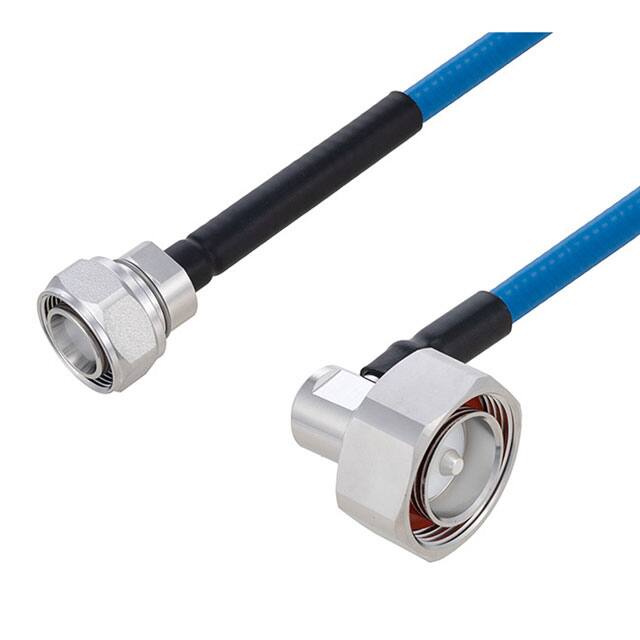

PE3C6236-60COAX CBL 4.3/10 TO 7/16 DIN |
1,352 |
|
Datasheet | - | Bag | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE38493-12COAX CBL N-TYPE TO QN |
3,321 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Jack | Female | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE38490-120COAX CBL N-TYPE TO QN |
3,548 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Plug | Male | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C8004-48COAX CBL NEX TO NEX |
4,527 |
|
Datasheet | - | Retail Package | Active | NEX to NEX | NEX10 Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Blue | - | - | - | - |
|
|
PE3C8004-150CMCOAX CBL NEX TO NEX |
2,537 |
|
Datasheet | - | Retail Package | Active | NEX to NEX | NEX10 Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Blue | - | - | - | - |
|
|
PE3C4454-24COAX CBL SSMC TO TNC |
3,946 |
|
Datasheet | - | Retail Package | Active | SSMC to TNC | SSMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE33407LF-4875 Ohm BNC Male to 75 Ohm BNC Ma |
4,737 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-6A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
