Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8302-60COAX CBL 4.3/10 TO 7/16 DIN |
4,900 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8302-150CMCOAX CBL 4.3/10 TO 7/16 DIN |
4,156 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C6055-60COAX CBL BNC TO TNC |
1,080 |
|
Datasheet | - | Retail Package | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE3C4452-12COAX CBL N-TYPE TO SSMC |
3,933 |
|
Datasheet | - | Retail Package | Active | N-Type to SSMC | N-Type Plug | Male | Free Hanging (In-Line) | - | SSMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | - | - | - |
|
|
PE3058-24COAX CBL SMA TO SSMA |
1,850 |
|
Datasheet | - | Retail Package | Active | SMA to SSMA | SMA Plug | Male | Free Hanging (In-Line) | - | SSMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE3C6306-48COAX CBL SMA TO SSMC |
4,209 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Plug | Male | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3W07540-48SMA Female Bulkhead to SSMC Plug |
2,495 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SSMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|

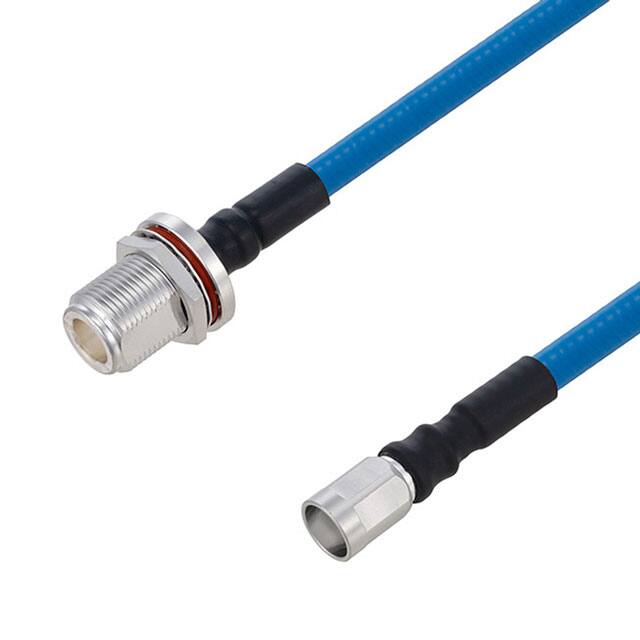

PE3C6255-36COAX CBL N-TYPE TO NEX |
3,253 |
|
Datasheet | - | Bag | Active | N-Type to NEX | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | NEX10 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|

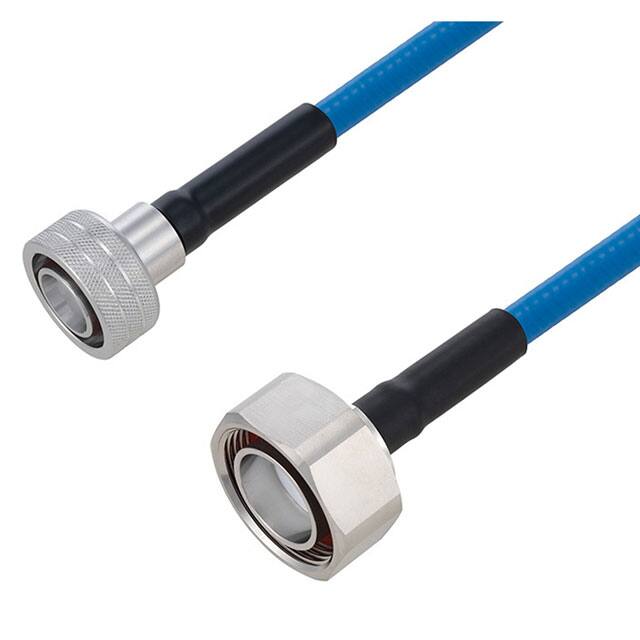

PE3C6184-60COAX CBL 4.3/10 TO 7/16 DIN |
2,480 |
|
Datasheet | - | Bag | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C8747/BK-300COAX CBL HD-BNC TO HD-BNC |
2,947 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
