Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C6515-150CMCOAX CBL 4.3/10 TO 7/16 DIN |
2,829 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE38496-48COAX CBL N-TYPE TO QN |
1,300 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Jack | Female | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE38492-36COAX CBL N-TYPE TO QN |
3,116 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Plug | Male | Free Hanging (In-Line) | - | QN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C7835-50CM7/16 DIN Male to 7/16 DIN Male L |
1,364 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3W16063LF/HS-12SMA Male Right Angle to N Male L |
2,688 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE38889-18UMCX Plug to MCX Jack Bulkhead C |
4,345 |
|
Datasheet | - | Retail Package | Active | MCX to UMCX | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE3C6306-12COAX CBL SMA TO SSMC |
1,933 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Plug | Male | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C7424-48COAX CBL SMA TO SSMC |
2,391 |
|
Datasheet | - | Retail Package | Active | SMA to SSMC | SMA Plug | Male | Free Hanging (In-Line) | - | SSMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | - | - | - | - |
|

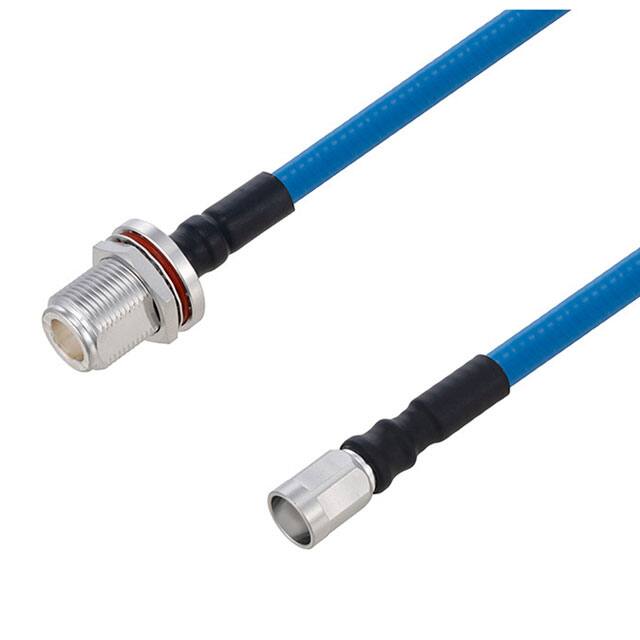

PE3C6255-24COAX CBL N-TYPE TO NEX |
1,419 |
|
Datasheet | - | Bag | Active | N-Type to NEX | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | NEX10 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6214-36COAX CBL SMA TO N-TYPE |
2,382 |
|
Datasheet | - | Bag | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
