Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

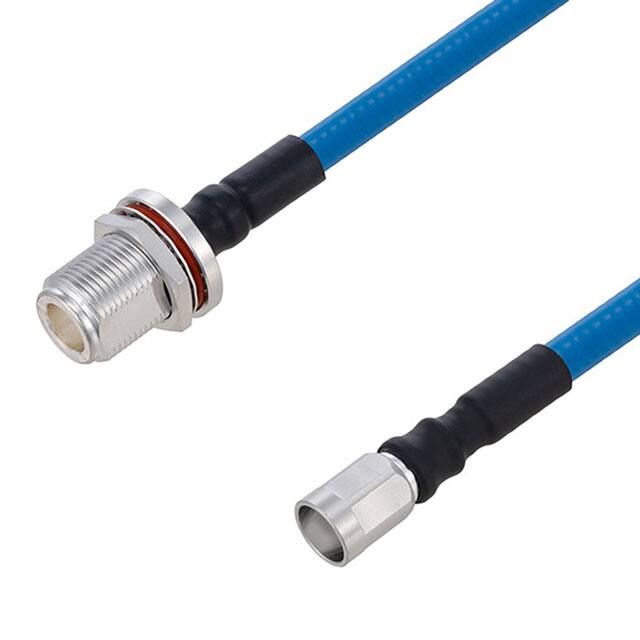

PE3C6255-12COAX CBL N-TYPE TO NEX |
2,916 |
|
Datasheet | - | Bag | Active | N-Type to NEX | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | NEX10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C8495-60COAX CBL 7/16 DIN TO 7/16 DIN |
4,046 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
PE3C6259-12COAX CBL SMA TO NEX |
2,212 |
|
Datasheet | - | Bag | Active | SMA to NEX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | NEX10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C6217-24COAX CBL SMA TO N-TYPE |
2,623 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C8747/WH-300COAX CBL HD-BNC TO HD-BNC |
4,696 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/VL-300COAX CBL HD-BNC TO HD-BNC |
1,749 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/OR-300COAX CBL HD-BNC TO HD-BNC |
1,660 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/BL-300COAX CBL HD-BNC TO HD-BNC |
2,055 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/YW-300COAX CBL HD-BNC TO HD-BNC |
4,292 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/GR-300COAX CBL HD-BNC TO HD-BNC |
2,299 |
|
Datasheet | - | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
