Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE34237LF-6COAX CBL SMA TO SMA |
4,611 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|

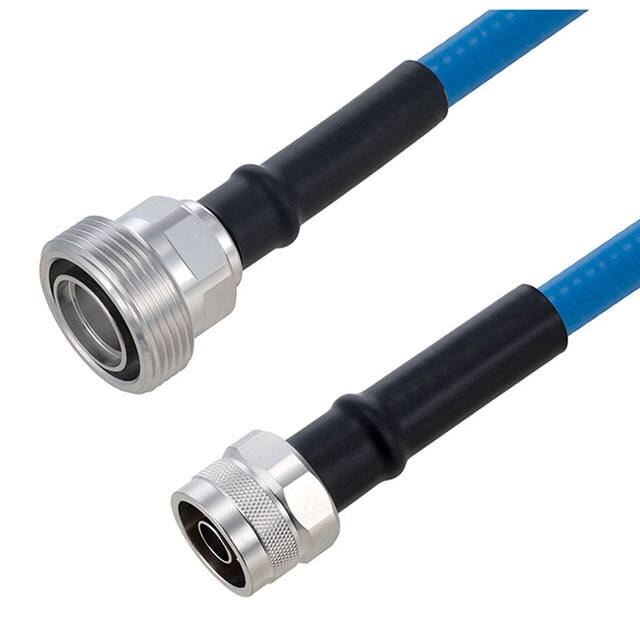

PE3C6384-24COAX CBL 7/16 DIN TO N-TYPE |
3,208 |
|
Datasheet | - | Bag | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C8519-36COAX CBL 7/16 DIN TO 7/16 DIN |
2,775 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8519-100CMCOAX CBL 7/16 DIN TO 7/16 DIN |
3,250 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
PE3C7834-24COAX CBL 4.3/10 TO 4.3/10 |
2,231 |
|
Datasheet | - | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | Panel Mount | Flange | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3396-1275 Ohm N Male to 75 Ohm BNC Male |
2,238 |
|
Datasheet | - | Retail Package | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-11 | 75 Ohms | 75 Ohms | - | 1 GHz | Black | - | - | - | - |
|
|
PE34237LF-12COAX CBL SMA TO SMA |
3,496 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3168-24COAX CBL N-TYPE TO N-TYPE |
2,793 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C5060-36COAX CBL SMA TO TNC |
2,928 |
|
Datasheet | - | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C8009-60SMA Male to SMA Male Right Angle |
2,895 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
