Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8492-48COAX CBL N-TYPE TO N-TYPE |
2,554 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8492-150CMFire Rated N Male to N Female Bu |
2,398 |
|
- |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3398-12COAX CBL BNC TO N-TYPE |
3,045 |
|
Datasheet | - | Retail Package | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3C8321-60COAX CBL 7/16 DIN TO N-TYPE |
4,177 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8301-48COAX CBL 4.3/10 TO 7/16 DIN |
2,751 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|

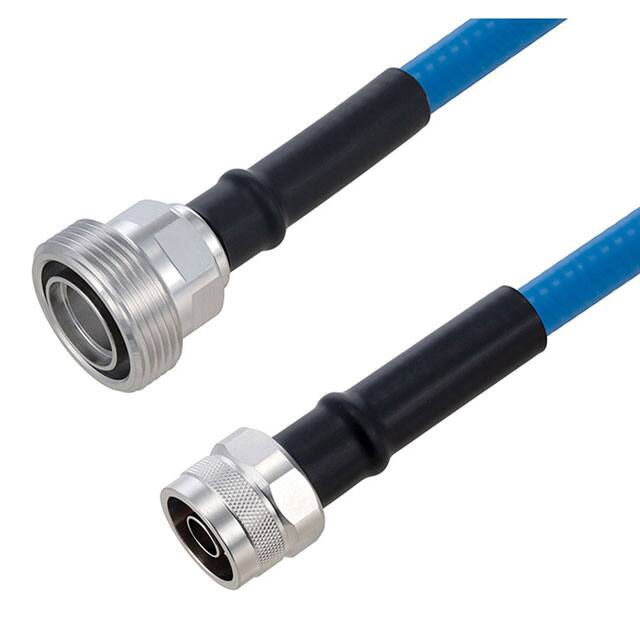

PE3C6384-12COAX CBL 7/16 DIN TO N-TYPE |
1,102 |
|
Datasheet | - | Bag | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C8519-24COAX CBL 7/16 DIN TO 7/16 DIN |
2,563 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8748/BK-72COAX CBL 1.0/2.3 TO HD-BNC |
1,407 |
|
Datasheet | - | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE3W03661LF-12COAX CBL SMA TO SMA |
3,145 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
PE3C7228-60UHF Male to Straight Cut Lead Lo |
3,938 |
|
Datasheet | - | Retail Package | Active | UHF to Cable | UHF Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 60.0" (1.5m) 5.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
