Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE34249LF-12COAX CBL SMA TO SMA |
2,283 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W08011-6COAX CBL 2.92MM TO SMA |
4,015 |
|
Datasheet | - | Retail Package | Active | 2.92mm to SMA | 2.92mm Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | 50 Ohms | 50 Ohms | 50 Ohms | - | Silver | - | - | - | - |
|
|
PE37952-48COAX CBL 7/16 DIN TO 7/16 DIN |
2,741 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W01480-24COAX CBL N-TYPE TO N-TYPE |
3,069 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C6775-36COAX CBL SMC TO SMC |
1,373 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3657LF-60COAX CBL SMA TO N-TYPE |
3,968 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C8482-12COAX CBL N-TYPE TO N-TYPE |
1,099 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | - | - | - | - |
|

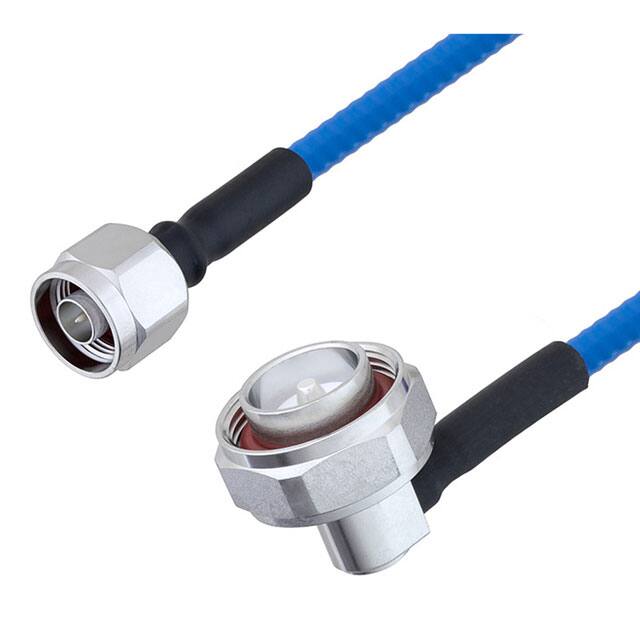

PE3C4136-48COAX CBL 7/16 DIN TO N-TYPE |
2,209 |
|
Datasheet | - | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PE3W04802-200CMCOAX CBL SMP TO SMP |
1,862 |
|
Datasheet | - | Retail Package | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | 0.047" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Tan | - | - | - | - |
|
|
PE3C3315-24SMA Female Bulkhead to SMB Plug |
1,774 |
|
Datasheet | - | Retail Package | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
