Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C1108-200CMReverse Polarity SMA Plug Right |
242 |
|
Datasheet | - | Retail Package | Active | RP-SMA to RP-SMA | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W10541/HS-36TNC Male to TNC Male Right Angle |
240 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -40°C ~ 85°C | - | - |
|
|
PE3W12619LF-36COAX CBL N-TYPE TO N-TYPE |
238 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
PE3W08271-12N Male to SHV Jack Bulkhead Cabl |
230 |
|
- |
- | Retail Package | Active | N-Type to SHV | N-Type Plug | Male | Free Hanging (In-Line) | - | SHV Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34408LF-18SMA Male to TNC Male Cable 18 In |
229 |
|
Datasheet | - | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE34279-48COAX CBL TNC TO TNC |
228 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34279LF-48TNC Male to TNC Male Cable 48 In |
228 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|
|
PE36661-12COAX CBL BNC TO SMA |
223 |
|
Datasheet | - | Retail Package | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W02498LF/HS-24COAX CBL TNC TO TNC |
220 |
|
Datasheet | - | Retail Package | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

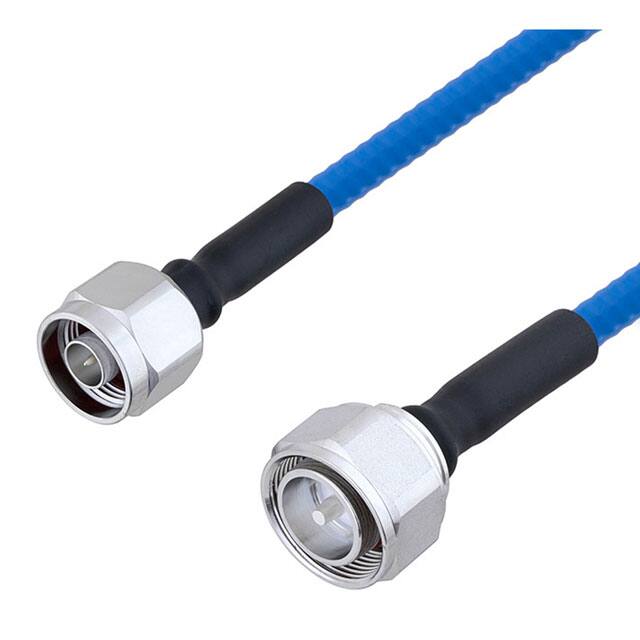

PE3C4141-60COAX CBL 4.3/10 TO N-TYPE |
216 |
|
Datasheet | - | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
