Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE36522-48COAX CBL 10-32 TO 10-32 |
2,941 |
|
Datasheet | - | Retail Package | Active | 10-32 to 10-32 | 10-32 Plug | Male | Free Hanging (In-Line) | - | 10-32 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W09764-6COAX CBL SMA TO SMP |
1,701 |
|
Datasheet | - | Retail Package | Active | SMA to SMP | SMA Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
PE3W09723-24COAX CBL RP-SMA TO TNC |
2,756 |
|
Datasheet | - | Retail Package | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Tan | - | - | - | - |
|

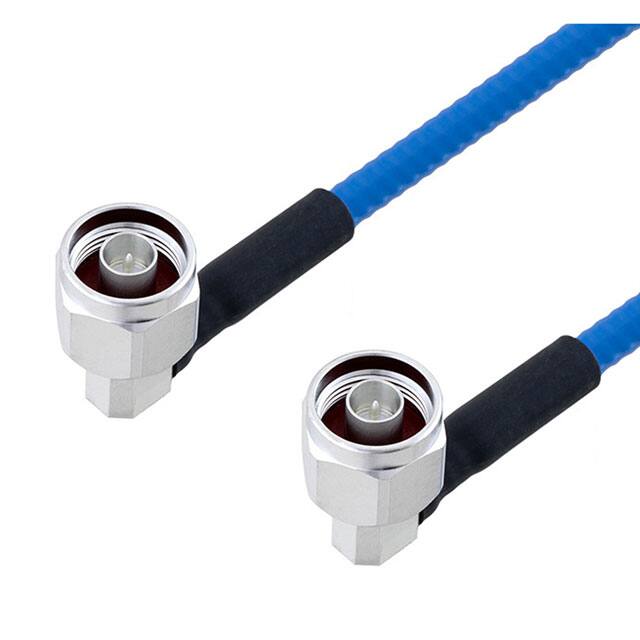

PE3C4145-48COAX CBL N-TYPE TO N-TYPE |
2,211 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3963LF-12COAX CBL N-TYPE TO N-TYPE |
3,819 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3963LF-6COAX CBL N-TYPE TO N-TYPE |
3,541 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3MSA00464-48COAX CBL TRB TO TRB |
1,992 |
|
Datasheet | - | Retail Package | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 78 Ohms | 78 Ohms | 78 Ohms | 10 MHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C10385-48Fire Rated N Male to N Male Righ |
2,218 |
|
- |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 125°C | - | - |
|
|
PE3MSA00457-36COAX CBL TRS TO TRS |
3,097 |
|
Datasheet | - | Retail Package | Active | TRS to TRS | TRS Plug | Male | Free Hanging (In-Line) | - | TRS Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 78 Ohms | 78 Ohms | 78 Ohms | 10 MHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C10393-48Fire Rated SMA Male to TNC Male |
2,899 |
|
- |
- | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
